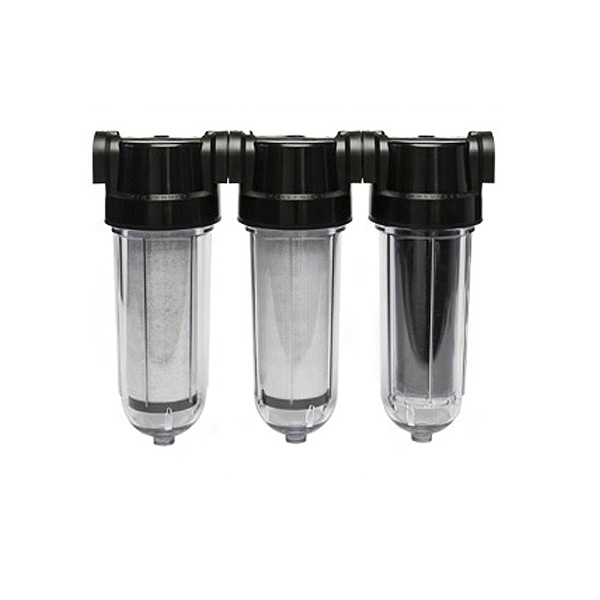

Cintropur SL240 Trio Filter Housing, 1″ Ports

£110.11 - £132.13 (inc. VAT)

SKU: FWCCNW24TRIOCTN-1 Categories: ,

KEY FEATURES

  • Three-stage filtration system – Combines sediment filtration and activated carbon treatment in one compact multi-stage unit.
  • 1″ inlet and outlet ports – Suitable for installations requiring a larger pipe connection while still using a space-saving filter housing.
  • Mechanical sediment protection – The filter sleeve stage helps reduce sand, rust, dirt, sediment and other suspended particles from the water supply.
  • Activated carbon treatment stages – Helps reduce chlorine, unwanted tastes and unpleasant odours for cleaner, fresher water.
  • Protects downstream equipment – Helps safeguard pipework, pumps, appliances, UV systems, water softeners and other water treatment equipment from particle build-up.

FULL CINTROPUR SL RANGE

FREQUENTLY BOUGHT TOGETHER

Cintropur TRIO water filter housing, filters and activated carbon bundle

Cintropur SL 240 TRIO Filter Housing 1" Ports + pack of 5 (100 Micron) filter sleeves + pack of 5 (25 Micron) filter sleeves + 3.4 Ltrs of Cintropur Activated Carbon.

£155.78 (ex. VAT)

Cintropur TRIO water filter housing, filters and activated carbon bundle

Cintropur SL 240 TRIO Filter Housing 1" Ports + pack of 5 (150 Micron) filter sleeves + pack of 5 (50 Micron) filter sleeves + 3.4 Ltrs of Cintropur Activated Carbon.

£190.83 (ex. VAT)

Cintropur TRIO water filter housing, filters and activated carbon bundle

Cintropur SL 240 TRIO Filter Housing 1" Ports + pack of 5 (300 Micron) filter sleeves + pack of 5 (150 Micron) filter sleeves + 3.4 Ltrs of Cintropur Activated Carbon.

£221.57 (ex. VAT)

Cintropur TRIO water filter housing, filters and activated carbon bundle

Cintropur SL 240 TRIO Filter Housing 1" Ports + pack of 5 (10 Micron) filter sleeves + pack of 5 (1 Micron) filter sleeves + 3.4 Ltrs of Cintropur Activated Carbon.

£160.46 (ex. VAT)

DESCRIPTION

The Cintropur SL240 TRIO 1" water filter is a compact three-stage filtration system designed to provide sediment removal and activated carbon treatment in one convenient unit. Ideal for domestic, light commercial, workshop and small agricultural water systems, the TRIO design helps improve water clarity, reduce unwanted tastes and odours, and protect downstream equipment from particle build-up.

Featuring 1" inlet and outlet ports, the SL240 TRIO is well suited to installations where a larger pipe connection is required while still maintaining a space-saving filter layout. The sediment filtration stage uses a replaceable Cintropur filter sleeve to help remove suspended particles such as sand, rust, dirt and sediment, while the activated carbon stages help reduce chlorine, unpleasant smells and unwanted tastes for cleaner, fresher water.

Suitable for mains water, rainwater, borehole, well and spring water applications, the Cintropur SL240 TRIO 1" offers an effective all-in-one filtration solution for users who want both mechanical protection and improved water quality. Its compact Smart Line design, durable construction and straightforward maintenance make it a practical choice for whole-house filtration, small business use, workshops, irrigation setups and general water treatment installations.

TECHNICAL

SL 160SL 240SL 240 TE-CTNSL 240 DUO-CTNSL 240 TRIO-CTN
Diameter of pipe3/4”3/4” or 1”3/4” or 1”3/4” or 1”3/4”or 1”
Average flow rate (m3/h) ∆P = 0.2 bar33,5 / 4,50,5*0,5*0,5*
Working pressure (bar)88888
Max. operating pressure (bar)1212121212
Max. operating temperature (°C)5050505050
Weight (Kg)0,680,91,231,853,05
Standard filter sleeve (µm)252525100 and 25
Available volume (litre)--0,570,570,57
Filtration surface (cm²)190450-4502 x 450
* Value with activated carbon CINTROPUR® SCIN

WHAT'S IN THE BOX

1 x Cintropur SL 240 TRIO 1" Ports Water Filter Housing
1 x 25 Micron Filter Sleeve

DRAWINGS

SL 160SL 240SL 240 TE-CTNSL 240 DUO-CTNSL 240 TRIO-CTN
A (Ø)3/4”3/4” or 1”3/4” or 1”3/4” or 1”3/4” or 1”
BDN20DN20 / DN25DN20 / DN25DN20 / DN25DN20 / DN25
C (mm)130130130260390
D (mm)2525252525
E (mm)152290290290290
