Home / Water Treatment / Cartridge Filters & Housings / Cintropur Centrifugal Filter Housings / Smart Line Range
£78.19 - £93.83 (inc. VAT)
£78.19 - £93.83 (inc. VAT)
- Two-stage filtration system – Combines mechanical sediment filtration and activated carbon treatment in one compact unit.
- 1″ inlet and outlet ports – Suitable for installations requiring a larger connection size while maintaining a space-saving filter design.
- Removes sediment and suspended particles – The filter sleeve stage helps reduce sand, rust, dirt, sediment and other particles from the water supply.
- Improves taste and odour – The activated carbon stage helps reduce chlorine, unwanted smells and unpleasant tastes for cleaner, fresher water.
- Protects downstream equipment – Helps safeguard pipework, appliances, pumps, water softeners, UV systems and other water treatment equipment from particle build-up.
FULL CINTROPUR SL RANGE
FREQUENTLY BOUGHT TOGETHER
Cintropur SL 240 DUO Filter Housing 1" Ports + pack of 5 (10 Micron) filter sleeves + 3.4 Ltrs of Cintropur Activated Carbon.
£115.21 (ex. VAT)
Cintropur SL 240 DUO Filter Housing 1" Ports + pack of 5 (25 Micron) filter sleeves + 3.4 Ltrs of Cintropur Activated Carbon.
£113.75 (ex. VAT)
Cintropur SL 240 DUO Filter Housing 1" Ports + pack of 5 (50 Micron) filter sleeves + 3.4 Ltrs of Cintropur Activated Carbon.
£113.97 (ex. VAT)
Cintropur SL 240 DUO Filter Housing 1" Ports + pack of 5 (100 Micron) filter sleeves + 3.4 Ltrs of Cintropur Activated Carbon.
£113.97 (ex. VAT)
DESCRIPTION

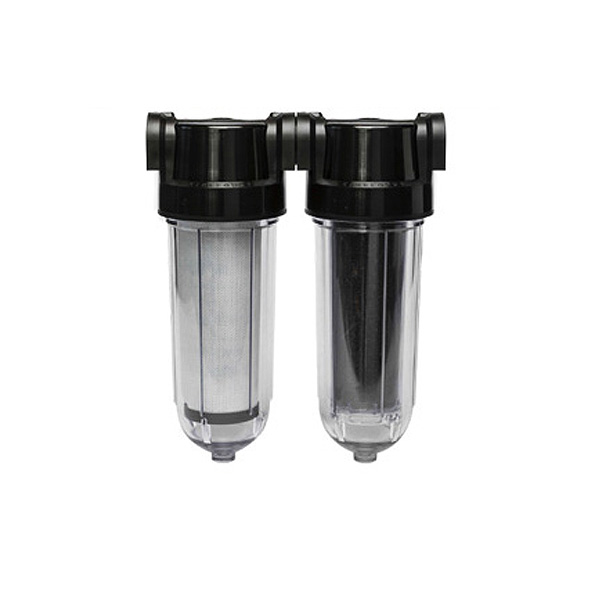

The Cintropur SL240 DUO 1" water filter is a compact two-stage filtration system designed to combine sediment removal and activated carbon treatment in one efficient unit. Ideal for domestic, light commercial, workshop and small agricultural water systems, the DUO design helps protect pipework, pumps, appliances, water softeners, UV units and downstream equipment while also improving the taste and odour of the water.
Featuring 1" inlet and outlet ports, the SL240 DUO is well suited to installations where a larger pipe connection is required without moving up to a bulkier filtration system. The first stage uses a replaceable Cintropur filter sleeve to help remove suspended particles such as sand, rust, dirt and sediment, while the second stage uses activated carbon to help reduce chlorine, unwanted smells and unpleasant tastes.
Suitable for mains water, rainwater, borehole, well and spring water applications, the Cintropur SL240 DUO 1" offers a practical all-in-one filtration solution for users who need both mechanical protection and carbon polishing. Its compact Smart Line design, durable construction and straightforward maintenance make it a reliable choice for improving water clarity, protecting equipment and producing cleaner, fresher water.
TECHNICAL
| SL 160 | SL 240 | SL 240 TE-CTN | SL 240 DUO-CTN | SL 240 TRIO-CTN | |
| Diameter of pipe | 3/4” | 3/4” or 1” | 3/4” or 1” | 3/4” or 1” | 3/4”or 1” |
| Average flow rate (m3/h) ∆P = 0.2 bar | 3 | 3,5 / 4,5 | 0,5* | 0,5* | 0,5* |
| Working pressure (bar) | 8 | 8 | 8 | 8 | 8 |
| Max. operating pressure (bar) | 12 | 12 | 12 | 12 | 12 |
| Max. operating temperature (°C) | 50 | 50 | 50 | 50 | 50 |
| Weight (Kg) | 0,68 | 0,9 | 1,23 | 1,85 | 3,05 |
| Standard filter sleeve (µm) | 25 | 25 | − | 25 | 100 and 25 |
| Available volume (litre) | - | - | 0,57 | 0,57 | 0,57 |
| Filtration surface (cm²) | 190 | 450 | - | 450 | 2 x 450 |
| * Value with activated carbon CINTROPUR® SCIN | |||||
WHAT'S IN THE BOX
1 x Cintropur SL 240 DUO 1" Ports Water Filter Housing
1 x 25 Micron Filter Sleeve
DRAWINGS
| SL 160 | SL 240 | SL 240 TE-CTN | SL 240 DUO-CTN | SL 240 TRIO-CTN | |
| A (Ø) | 3/4” | 3/4” or 1” | 3/4” or 1” | 3/4” or 1” | 3/4” or 1” |
| B | DN20 | DN20 / DN25 | DN20 / DN25 | DN20 / DN25 | DN20 / DN25 |
| C (mm) | 130 | 130 | 130 | 260 | 390 |
| D (mm) | 25 | 25 | 25 | 25 | 25 |
| E (mm) | 152 | 290 | 290 | 290 | 290 |
