MULTIJET BETA SDC

Multi – jet water meter with dry dial counter

Multi-jet water meter for potable cold water, dry dial, straight reading, magnetic drive. Certified MID 2004/22/CE Modules B + D or EEC 75/33.

Body manufactured in brass.

PULSE OUTPUT AVAILABLE

Straight Reading or Pulsed Output. Universal Reed Switch, can be set to k1, k10 or k100. WRAS Approved. Reed Switch can be set for 1 pulse per ltr, 1 pulse per 10 ltr or 1 pulse per 100 ltr simply by changing switch position on the water meter.

*Reed Switch option available at checkout.

£65.66£101.95
£76.03£112.32
£129.60£165.89
£155.52£191.81
£207.36£243.65
£311.04£347.33
TECHNICAL DATA
SizePermanent FlowMaximum FlowTransitional FlowMinimum FlowWorking PressureMinimum ReadingMaximum ReadingTemperature Class
(mm)(inch)Q3 (m3/h)Q4 (m3/h)Q2 (l /h)Q1 (l /h)(bar)(l)(m3)
13/151/2"2,53,12550,031,3160,0599.999T30/T50
203/4"4,05,00080,050,0160,0599.999T30/T50
251"6,37,875126,078,8160,0599.999T30/T50
301"1/410,012,500200,0125,0160,0599.999T30/T50
401"1/216,020,000320,0200,0160,5999.999T30/T50
502"25,031,250500,0312,5160,5999.999T30/T50
(mm) SIZE (inch)13/152025304050 *
1/2"3/4"1"1"1/41"1/22"
L (mm)110 - 145
165 - 170
160
190
160
260
160
260
200 - 300300
H (mm)105110115120150180 fil
190 fla
Total Length of Connectors
(mm)
80100100120140160

Typical Error Curve

Beta SDC Error Curve

Pressure Loss Diagram

Water Meter Pressure Loss Diagram

Dimensions

Water Meter - Dimensions

MULTIJET BETA SDC datasheet

WOLTMANN OMEGA

Woltmann axial water meter helix type for cold potable water T50, straight reading on rollers, orientable “copper can” dry-dial register, pre equipped for pulse emitters application.

Certified MID 2004/22/CE Module B + D or EEC 75/33.

PULSE OUTPUT AVAILABLE

Straight Reading or Pulsed Output, Universal Reed Switch. Can be set to k1, k10 or k100. WRAS Approved, Reed Switch can be set for 1 pulse per ltr. 1 pulse per 10 ltr or 1 pulse per 100 ltr simply by changing switch position on the water meter.

*Reed Switch option available at checkout.

£362.88£399.17
£535.68£571.97
£673.92£708.48
TECHNICAL DATA
SizePermanent FlowMaximum FlowTransitional FlowMinimum FlowWorking PressureMinimum ReadingMaximum ReadingTemperature Class
(mm)(inch)Q3 (m3/h)Q2 (l /h)Q1 (l /h)(bar)(l)(m3)
502"4050,00800500160,5999.999 T30/T50
652"1/26378,751260788160,5999.999 T30/T50
803"6378,751260788160,5999.999 T30/T50
1004"100125,0020001250160,5999.999 T30/T50
1255"160200,0032002000160,5999.999 T30/T50
1506"250312,50500031251659.999.999T30/T50
2008"400500,00800050001659.999.999T30/T50
25010"630787,50126007875165099.999.999T30/T50
30012"10001250,002000012500165099.999.999T30/T50
40016"16002000,003200020000165099.999.999T30/T50
50020"25003125,005000031250165099.999.999T30/T50
(mm) SIZE (inch)506580100125150200250300400500
L (mm)200200225250250300350450500600800
H (mm)252262272282297341371480516647785

Typical Error Curve

Woltmann Error Curve

Pressure Loss Diagram

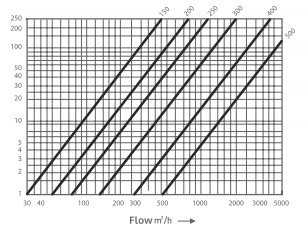

Pressure Loss Woltmann Water Meter

Pressure Loss Woltmann Water Meter

Dimensions

Woltmann Drawing

WOLTMANN OMEGA datasheet

BETA COMPOSITE

Multi-jet, dry dial, turbine water meter, for cold and warm potable water, with ring in composite and mineral glass (fixed tight counter), straight reading on numbered rollers, magnetic transmission.

Certified MID 2004/22/CE Modules B + D or EEC 75/33. Body and ring in composite.

PULSE OUTPUT AVAILABLE

Straight Reading or Pulsed Output. Universal Reed Switch, can be set to k1, k10 or k100. Reed Switch can be set for 1 pulse per ltr, 1 pulse per 10 ltr or 1 pulse per 100 ltr simply by changing switch position on the water meter.

*Reed Switch option available at checkout.

£54.43£90.72
£59.62£95.90
£101.09£137.38
£114.05£150.34
£171.07£207.36
TECHNICAL DATA
SizePermanent FlowMaximum FlowTransitional FlowWorking PressureMinimum ReadingMaximum ReadingTemperature Class
(mm)(inch)Q3 (m3/h)Q4 (l /h)Q2 (l /h)(bar)(l)(m3)
13/151/2"2,53,12550,031,3160,05T30/T50
203/4"4,05,00080,050,0160,05T30/T50
251"6,37,875126,078,8160,05T30/T50
301"1/410,012,500200,0125,0160,05T30/T50
401"1/216,020,000320,0200,0160,5T30/T50
(mm) SIZE (inch)13/1520253040
1/2"3/4"1" 1"1/41"1/2
L (mm)165190260260300
H (mm)105105120120140
Total Length of Connectors
(mm)
80100100120140

Typical Error Curve

Composite Error Curve

Pressure Loss Diagram

Omega Error Curve

Dimensions

Omega Water Meter Dimensions

BETA COMPOSITE datasheet
