Cintropur SL240 Filter Housing, 1″ Ports

£34.77 - £41.72 (inc. VAT)

SKU: FWCCNW24-1 Categories: ,

KEY FEATURES

  • 1″ inlet and outlet ports – Ideal for installations where a larger pipe connection is required while still using a compact filter housing.
  • Compact domestic and light commercial filtration – Suitable for whole-house systems, workshops, small commercial premises, irrigation setups and general water treatment use.
  • Effective sediment removal – Helps filter out suspended particles such as sand, rust, dirt and sediment from the water supply.
  • Centrifugal filtration design – Encourages heavier particles to separate before the water passes through the filter sleeve, helping maintain efficient performance.
  • Compatible with replaceable Cintropur sleeves – Can be used with different micron-rated filter sleeves, allowing the filtration level to be matched to the water source and application.

FULL CINTROPUR SL RANGE

FREQUENTLY BOUGHT TOGETHER

Cintropur SLl240 filter hosing and filter sleeves package

Cintropur SL 240 Filter Housing 1" Ports + pack of 5 (10 Micron) filter sleeves.

£46.12 (ex. VAT)

Cintropur SLl240 filter hosing and filter sleeves package

Cintropur SL 240 Filter Housing 1" Ports + pack of 5 (25 Micron) filter sleeves.

£44.66 (ex. VAT)

Cintropur SLl240 filter hosing and filter sleeves package

Cintropur SL 240 Filter Housing 1" Ports + pack of 5 (50 Micron) filter sleeves.

£44.88 (ex. VAT)

Cintropur SLl240 filter hosing and filter sleeves package

Cintropur SL 240 Filter Housing 1" Ports + pack of 5 (100 Micron) filter sleeves.

£44.88 (ex. VAT)

DESCRIPTION

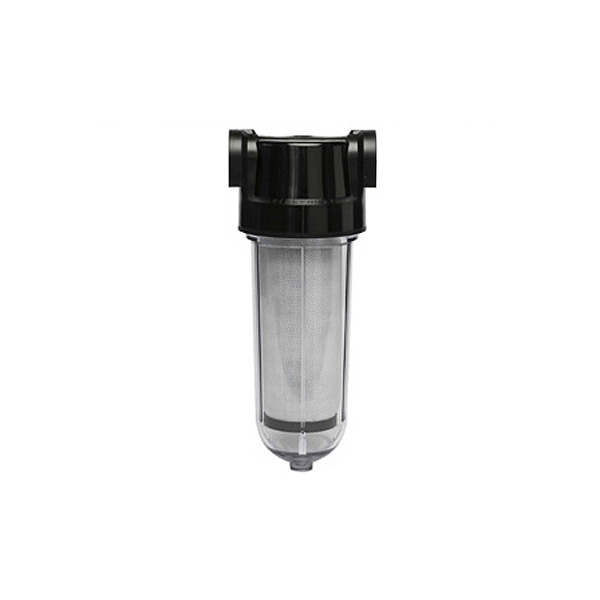

The Cintropur SL240 1" water filter is a compact and efficient water filtration housing designed for domestic, light commercial and small agricultural water systems. Built to remove sediment, sand, rust, dirt and other suspended particles from the water supply, it provides reliable mechanical filtration while helping to protect pipework, appliances, pumps, water softeners, UV units and other downstream water treatment equipment.

Featuring 1" inlet and outlet ports, the SL240 is ideal for installations where a larger connection size is required while still benefiting from a compact filter body. Its centrifugal filtration design helps separate heavier particles before the water passes through the filter sleeve, supporting good flow performance and helping reduce pressure loss.

The Cintropur SL240 uses replaceable filter sleeves, available in a choice of micron ratings, so the filtration level can be matched to the water source and application. Suitable for mains water, rainwater, borehole, well and spring water systems, this filter housing is a practical solution for improving water clarity and extending the life of connected equipment.

Durable, easy to maintain and designed for dependable everyday use, the Cintropur SL240 1" water filter is a versatile choice for whole-house filtration, workshops, small commercial premises, irrigation setups and general water treatment installations.

TECHNICAL

SL 160SL 240SL 240 TE-CTNSL 240 DUO-CTNSL 240 TRIO-CTN
Diameter of pipe3/4”3/4” or 1”3/4” or 1”3/4” or 1”3/4”or 1”
Average flow rate (m3/h) ∆P = 0.2 bar33,5 / 4,50,5*0,5*0,5*
Working pressure (bar)88888
Max. operating pressure (bar)1212121212
Max. operating temperature (°C)5050505050
Weight (Kg)0,680,91,231,853,05
Standard filter sleeve (µm)252525100 and 25
Available volume (litre)--0,570,570,57
Filtration surface (cm²)190450-4502 x 450
* Value with activated carbon CINTROPUR® SCIN

WHAT'S IN THE BOX

1 x Cintropur SL 240 1" Ports Water Filter Housing
1 x 25 Micron Filter Sleeve

DRAWINGS

SL 160SL 240SL 240 TE-CTNSL 240 DUO-CTNSL 240 TRIO-CTN
A (Ø)3/4”3/4” or 1”3/4” or 1”3/4” or 1”3/4” or 1”
BDN20DN20 / DN25DN20 / DN25DN20 / DN25DN20 / DN25
C (mm)130130130260390
D (mm)2525252525
E (mm)152290290290290
