Cintropur SL160 Filter Housing, 3/4″ Ports
Home / Water Treatment / Cartridge Filters & Housings / Cintropur Centrifugal Filter Housings / Smart Line Range
£28.23 - £33.88 (inc. VAT)
£28.23 - £33.88 (inc. VAT)
KEY FEATURES
- Compact domestic water filter – Ideal for smaller water filtration installations where space is limited.
- 3/4″ connection – Designed with a 3/4″ inlet and outlet connection for easy integration into domestic pipework.
- 3 m³/h flow rate – Provides reliable filtration performance for household and light-use water systems.
- Centrifugal filtration technology – Helps separate heavier particles such as sediment, sand and rust before final filtration through the sleeve.
- Compatible with replaceable filter sleeves – Uses Cintropur filter sleeves available in different micron ratings, allowing the filtration level to be matched to the application.
FULL CINTROPUR SL RANGE
FREQUENTLY BOUGHT TOGETHER
Cintropur SL160 Filter Housing + pack of 5 (10 Micron) filter sleeves.
£37.26 (ex. VAT)
Cintropur SL160 Filter Housing + pack of 5 (25 Micron) filter sleeves.
£37.26 (ex. VAT)
Cintropur SL160 Filter Housing + pack of 5 (50 Micron) filter sleeves.
£37.26 (ex. VAT)
Cintropur SL160 Filter Housing + pack of 5 (100 Micron) filter sleeves.
£37.26 (ex. VAT)
DESCRIPTION

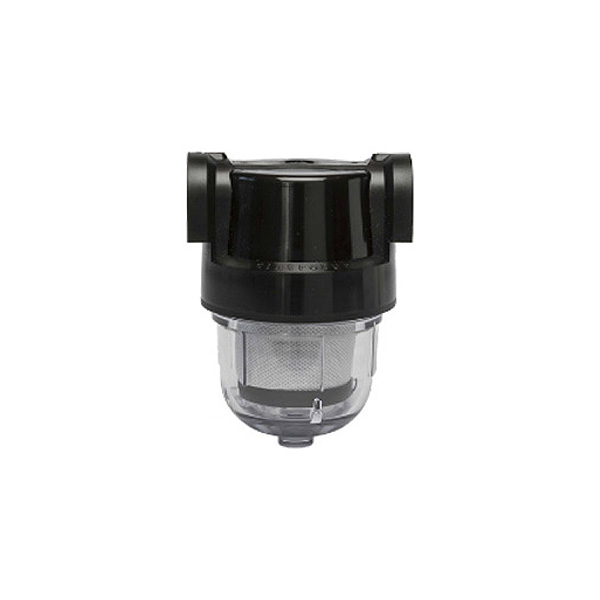

The Cintropur SL160 is a compact centrifugal water filter housing designed for domestic water filtration applications. Ideal for helping protect household pipework, appliances, pumps and downstream water treatment equipment, the SL160 removes sediment, sand, rust and other suspended particles from the water supply using Cintropur’s efficient mechanical filtration system.
With a 3/4" connection and a flow rate of up to 3 m³/h, the SL160 is well suited to smaller domestic installations where reliable filtration and a compact footprint are important. The filter uses replaceable Cintropur filter sleeves, available in different micron ratings, allowing you to choose the level of filtration best suited to your water source and application.
Built from high-quality synthetic materials, the Cintropur SL160 is designed for drinking water and general water filtration use. Its centrifugal action helps larger particles settle in the lower bowl before the water passes through the filter sleeve, helping maintain good flow performance with low pressure loss.
Suitable for mains water, rainwater, borehole, well and spring water applications, the Cintropur SL160 is a practical, easy-to-maintain filtration solution for improving water clarity and protecting your wider water system.
TECHNICAL
| SL 160 | SL 240 | SL 240 TE-CTN | SL 240 DUO-CTN | SL 240 TRIO-CTN | |
| Diameter of pipe | 3/4” | 3/4” or 1” | 3/4” or 1” | 3/4” or 1” | 3/4”or 1” |
| Average flow rate (m3/h) ∆P = 0.2 bar | 3 | 3,5 / 4,5 | 0,5* | 0,5* | 0,5* |
| Working pressure (bar) | 8 | 8 | 8 | 8 | 8 |
| Max. operating pressure (bar) | 12 | 12 | 12 | 12 | 12 |
| Max. operating temperature (°C) | 50 | 50 | 50 | 50 | 50 |
| Weight (Kg) | 0,68 | 0,9 | 1,23 | 1,85 | 3,05 |
| Standard filter sleeve (µm) | 25 | 25 | − | 25 | 100 and 25 |
| Available volume (litre) | - | - | 0,57 | 0,57 | 0,57 |
| Filtration surface (cm²) | 190 | 450 | - | 450 | 2 x 450 |
| * Value with activated carbon CINTROPUR® SCIN | |||||
WHAT'S IN THE BOX
1 x Cintropur SL 160 Water Filter Housing
1 x 25 Micron Filter Sleeve
DRAWINGS
| SL 160 | SL 240 | SL 240 TE-CTN | SL 240 DUO-CTN | SL 240 TRIO-CTN | |
| A (Ø) | 3/4” | 3/4” or 1” | 3/4” or 1” | 3/4” or 1” | 3/4” or 1” |
| B | DN20 | DN20 / DN25 | DN20 / DN25 | DN20 / DN25 | DN20 / DN25 |
| C (mm) | 130 | 130 | 130 | 260 | 390 |
| D (mm) | 25 | 25 | 25 | 25 | 25 |
| E (mm) | 152 | 290 | 290 | 290 | 290 |
