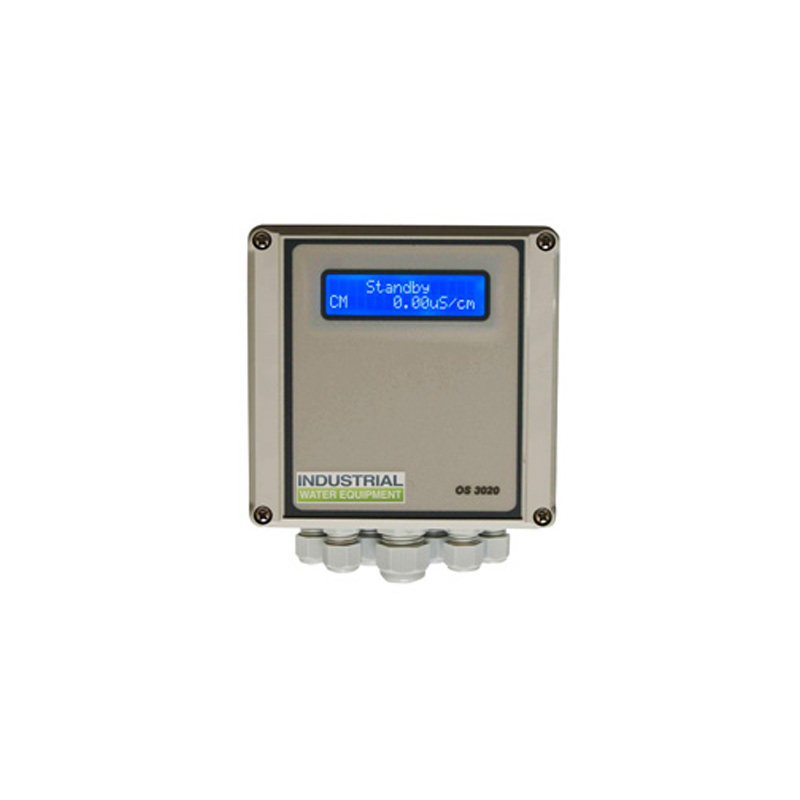

Reverse Osmosis Controller – OS3020 (including conductivity cell, 3 inputs and 3 outputs). | |
Model | Power in / out |
OS3020 | 24, 115 or 230 VAC |
OS3020DC | 12 or 24 VDC |
Reverse Osmosis Controller – OS3020 (including conductivity meter, 3 inputs and 3 outputs).
- User operated programming using double row of illuminated LCD display
- Display text in English, French, German, Italian, Spanish, Swedish, Czech or Dutch
- Adaption to user specific requirements by means of options programmable on site
- 4 programmable stages (Production, Stand-by, Rinse after production, Interval rinse during Standby)
- Extensive status report facility using information button
- 2 inputs : low water pressure and tank full
- 1 programmable input for : stop, excess pressure or tank empty
- 2 powered relay outputs: Inlet valve (fused 8A), High pressure pump (fused 8A)
- 1 relay output (dry contact) : programmable for Alarm or Concentrate valve
- Secure from power failure as all data is stored long-term without battery
- Efficient micro controller with watchdog, illegal operation code and cycle monitoring
- Safeguarded from EMC by galvanic separation between micro controller and in- and output circuits and also by additional interference suppression filter
- Available for wall-mounting
- Available (input /output) : 12VDC/12VDC, 24VDC/24VDC, 24VAC/24VAC, 115VAC/115VAC, 230VAC/230VAC
