Mixed Bed Controller – EC3020

    Price range: £1,491.15 through £1,564.57



    To request a call back regarding this product please complete the form below.






        SKU: EC3020-1

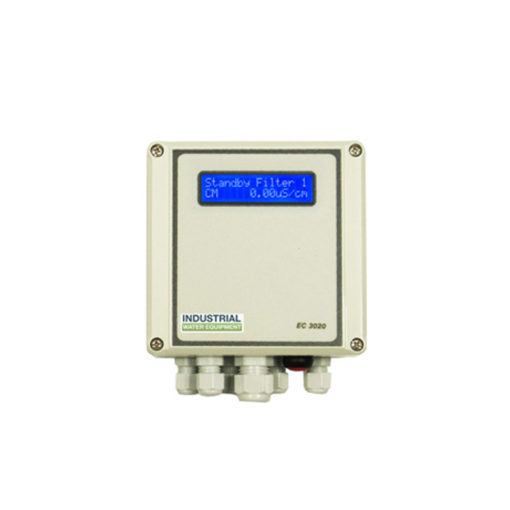

          Mixed Bed Controller – EC3020

          Water Filter / Softener Controller – EC3020 (Incl conductivity meter, 3 inputs and 3 outputs).
          ModelPower in / out
          EC302024/24, 115/115 or 230/230 VAC
          EC3020DC12 or 24 VDC
          • User operated programming using double row of illuminated LCD display
          • Display text in English, French, German, Italian or Dutch
          • Adaption to user specific requirements by means of options programmable on site
          • 1 connection for conductivity sensor (cell constant programmable from 0,01 to 10,00 cm-1)
          • Manual temperature compensation
          • 2 inputs : tank empty and tank full
          • 2 powered relay outputs: Service valve 1 (fused 8A), Service valve 2 (fused 8A)
          • 1 relay output (dry contact) : Alarm
          • Secure from power failure as all data is stored long-term without battery
          • Efficient micro controller with watchdog, illegal operation code and cycle monitoring
          • Safeguarded from EMC by galvanic separation between micro controller and in- and output circuits and also by additional interference suppression filter
          • Available for wall mounting
          • Available (input /output) : 12VDC/12VDC, 24VDC/24VDC, 24VAC/24VAC, 115VAC/115VAC, 230VAC/230VAC
          Please Select

          EC3020 – 24V / 24V VAC, EC3020 – 115V / 115V VAC, EC3020 – 230V / 230V VAC, EC3020DC – 12V / 12V VDC, EC3020DC – 24V / 24V VDC
