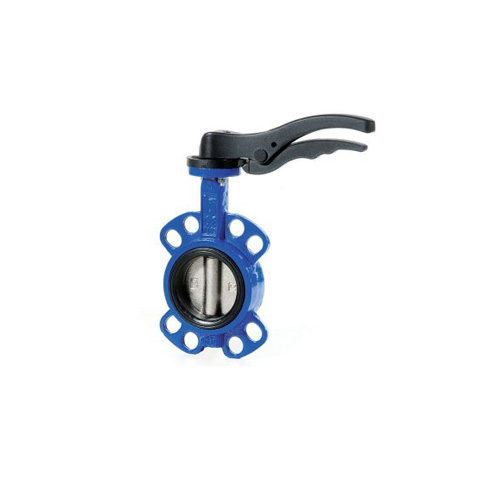

Multi-flange Wafer Pattern Butterfly Valve – Stainless Steel Disc – EPDM Liner

Multi-flange Wafer Pattern Butterfly Valve – Stainless Steel Disc – EPDM Liner

Price range: £53.45 through £6,220.80


To request a call back regarding this product please complete the form below.





      SKU: S92-LV9911

      ISO 5211 for Direct Mount, Epoxy Coated Ductile Iron Body, 316 Stainless Steel Disc, EPDM Liner, Locking Lever Operation 1” to 12”, Gearbox Operation 14” to 24”, Complies with 97/23/CE (PED) Directive CE 1115 Rated PN16 1” to 12”, PN10 14” to 24”, Temperature -10°C to 120°C. Note: Gearbox Operation Available for all sizes, please enquire. 1” to 16” to fit PN6, PN10, PN16, ANSI 150, Table D and/or Table E Flanges. 18” to 24” to fit PN16 Flanges. WRAS Approved Valves Stocked from 2” to 12”, Other Sizes Stocked are not WRAS Approved. If You Require Other Sizes with WRAS Approval, Please Enquire.

      S92-LV9911

      1 1/2″, 1 1/4″, 1″, 10″, 12″, 14″, 16″, 18″, 2 1/2″, 2″, 20″, 24″, 3″, 4″, 5″, 6″, 8″
