£625.73
| Type: | Dosing Pump |
| Flow rate: | 2.500 l/h ; 11.0 gpm |
| Dosing: | 0,2 - 2 % |
| Dosing ratio: | 1:500 ; 1:50 |
| Operating pressure: | 0,3 - 6 bar ; 4.35 - 87 psi |
| Maximum static pressure: | 10 bar ; 145 psi |
| Temperature: | 5° - 40° C ; 41- 104° F |
| Installation: | Wall mounting |
| Metal Components: | AISI 316, Duplex |
| Plastic Components: | POM, PP, HDPE, PA12 |
| Seals: | Viton Extreme VX |

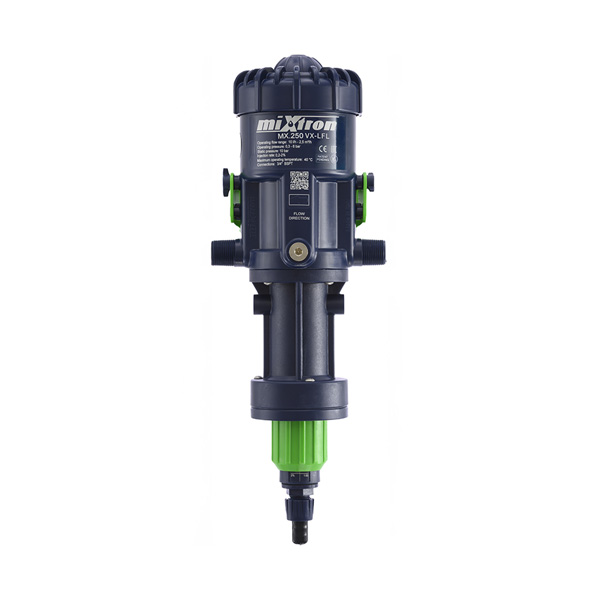

The dosing pump MX.250.P022.LFL is designed for reliable and versatile performance in a wide range of industrial applications. With a flow rate of up to 2500 litres per hour, this pump offers dosing accuracy ranging from 0.2 to 2%, with configurable dosing ratios of 1:500 and 1:50. The operating pressure of the pump ranges from 0.3 to 6 bar, while the maximum static pressure is 10 bar, ensuring stable operation even under high pressure conditions. As far as the operating range is concerned, the pump operates in a temperature range of 5°C to 40°C.
Designed for ground installation, our pump is made of high-quality materials such as AISI 316 stainless steel and Duplex steel for the metal components, and POM, PP, HDPE and PA12 for the plastic ones, which provide corrosion resistance and durability. Viton and EPDM seals ensure an optimal seal and prevent leakage.
| Seal Type | VX |
|---|
