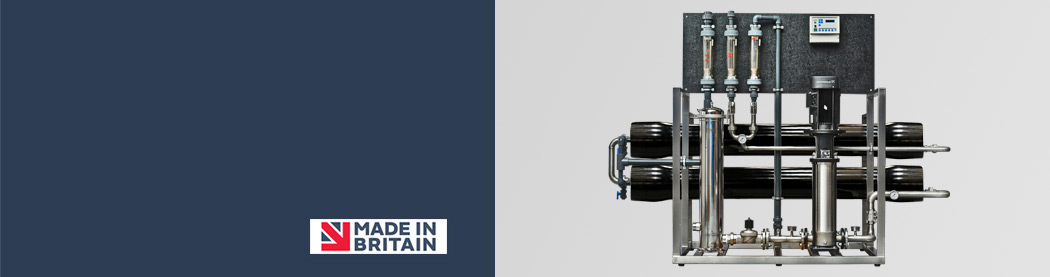

IWE promax 8 RANGE
- Manufactured in the UK
- Unbeatable Recovery & Efficiency
- 316 Stainless Steel Frame & Pipework
- Fully Programmable
- 2 Line LED Display
- Customisable Colour and Logo
- Stainless Solenoids and Control Valves
- Stainless Membrane Housings
- Grundfos Pumps
- Fully Factory Tested
- P65 Rated
- Compatible with One Flow Technology
Reverse Osmosis Pro Max 8 Range
£20,556.00 - £17,130.00 (exc. VAT)
Reverse Osmosis Pro Max 8 Range
£24,120.00 - £20,100.00 (exc. VAT)
Reverse Osmosis Pro Max 8 Range
£27,600.00 - £23,000.00 (exc. VAT)
Reverse Osmosis Pro Max 8 Range
£29,400.00 - £24,500.00 (exc. VAT)
Reverse Osmosis Pro Max 8 Range
£31,200.00 - £26,000.00 (exc. VAT)
Reverse Osmosis Pro Max 8 Range
£33,960.00 - £28,300.00 (exc. VAT)
| IWE Promax Range Reverse Osmosis Water Filter | Promax 8 4300 | Promax 8 5400 | Promax 8 7000 | Promax 8 8000 | Promax 8 9500 | Promax 8 12000 | |
| Permeate flow rate | l/h | 4300 | 5400 | 7000 | 8000 | 9500 | 12000 |
| Min. salt rejection | % | 97 | 97 | 97 | 97 | 97 | 97 |
| Recovery | % | 75 - 80 | 75 - 80 | 75 - 80 | 75 - 80 | 75 - 80 | 75 - 80 |
| Operating pressure | bar | 13.5 | 13.0 | 13.5 | 13.0 | 13.5 | 12.5 |
| Membrane element / number | 8040 /3 | 8040 /4 | 8040 /5 | 8040 /6 | 8040 /7 | 8040 /9 | |
| Voltage | V/Hz | 3 x 400/50 | 3 x 400/50 | 3 x 400/50 | 3 x 400/50 | 3 x 400/50 | 3 x 400/50 |
| Motor power | kW | 5.5 | 5.5 | 7.5 | 11 | 11 | 11 |
| Pre-fusing | A | 16 | 16 | 20 | 25 | 25 | 25 |
| Feedwater connection | R | 40 | 40 | 40 | 50 | 50 | 50 |
| Permeate/concentrate connection | DN | 40 | 40 | 40 | 50 | 50 | 50 |
| Conductivity range | μS/cm | 1 – 200 | 1 – 200 | 1 – 200 | 1 – 200 | 1 – 200 | 1 – 200 |
| Min. / max. feed water pressure | bar | 2 / 7 | 2 / 7 | 2 / 7 | 2 / 7 | 2 / 7 | 2 / 7 |
| Min. / max. feed water temp | °C | 5 / 35 | 5 / 35 | 5 / 35 | 5 / 35 | 5 / 35 | 5 / 35 |
| Max. ambient temperature | °C | 45 | 45 | 45 | 45 | 45 | 45 |
| pH | 3 – 12 | 3 – 12 | 3 – 12 | 3 – 12 | 3 – 12 | 3 – 12 | |
| Height | mm | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
| Width | mm | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 |
| Depth | mm | 850 | 850 | 850 | 850 | 850 | 850 |
| Weight approx | ca. kg | 500 | 550 | 650 | 750 | 850 | 950 |
IWE Reverse Osmosis Range
Industrial Water Equipment now manufacture a brand new range of Reverse Osmosis Systems. Each unit is manufactured and tested in our new factory in Matlock, Derbyshire.
All of our units are fully bespoke with choices of colour and inclusion of your own logo. Utilising only the best materials such as 316 stainless steel and Grundfos pumps, we believe they are the best engineered and most efficient Reverse Osmosis Systems available on the market.
TECHNICAL DATA
| Permeate flow rate | l/h | 150 |
| Min. salt rejection | % | 95 |
| Recovery | % | Up to 80 |
| Operating pressure | bar | 10.0 |
| Membrane element / number | 4021/1 | |
| Voltage | V/Hz | 230/50 |
| Motor power | kW | 0.4 |
| Pre-fusing | A | 2.5 |
| Feedwater connection | R | ¾'' AG |
| Permeate/concentrate connection | DN | 10 |
| Conductivity range | μS/cm | 1 – 99 |
| Min. / max. feed water pressure | bar | 3 / 6 |
| Min. / max. feed water temp | °C | 5 / 35 |
| Max. ambient temperature | °C | 40 |
| pH | 3 – 11 | |
| Height | mm | 370 |
| Width | mm | 800 |
| Depth | mm | 370 |
| Weight approx | ca. kg | 31 |
| Permeate flow rate | l/h | 150 |
| Min. salt rejection | % | 95 |
| Recovery | % | Up to 80 |
| Operating pressure | bar | 10.0 |
| Membrane element / number | 4021/1 | |
| Voltage | V/Hz | 230/50 |
| Motor power | kW | 0.4 |
| Pre-fusing | A | 2.5 |
| Feedwater connection | R | ¾'' AG |
| Permeate/concentrate connection | DN | 10 |
| Conductivity range | μS/cm | 1 – 99 |
| Min. / max. feed water pressure | bar | 3 / 6 |
| Min. / max. feed water temp | °C | 5 / 35 |
| Max. ambient temperature | °C | 40 |
| pH | 3 – 11 | |
| Height | mm | 1600 |
| Width | mm | 1200 |
| Depth | mm | 1000 |
| Weight approx | ca. kg | 480 |
| IWE Pro Range Reverse Osmosis Water Filter | Pro 300 | Pro 600 | Pro 900 | Pro 1200 | Pro 1500 | |
| Permeate flow rate | l/h | 300 | 600 | 900 | 1200 | 1500 |
| Min. salt rejection | % | 97 | 97 | 97 | 97 | 97 |
| Recovery | % | 75 | 75 | 75 | 75 | 75 |
| Operating pressure | bar | 14 | 14 | 12 | 11 | 10 |
| Membrane element / number | 4040 / 1 | 4040 / 2 | 4040 / 3 | 4040 / 4 | 4040 / 5 | |
| Voltage | V/Hz | 240 | 240 | 3 x 400/50 | 3 x 400/50 | 3 x 400/50 |
| Motor power | kW | 1.5 | 1.5 | 1.5 | 2.2 | 2.2 |
| Pre-fusing | A | 13 | 13 | 16 | 16 | 16 |
| Feedwater connection | R | 20 | 20 | 20 | 20 | 20 |
| Permeate/concentrate connection | DN | 20 | 20 | 20 | 20 | 20 |
| Conductivity range | μS/cm | 2 – 200 | 2 – 200 | 2 – 200 | 2 – 200 | 2 – 200 |
| Min. / max. feed water pressure | bar | 2 / 6 | 2 / 6 | 2 / 6 | 2 / 6 | 2 / 6 |
| Min. / max. feed water temp | °C | 5 / 35 | 5 / 35 | 5 / 35 | 5 / 35 | 5 / 35 |
| Max. ambient temperature | °C | 40 | 40 | 40 | 40 | 40 |
| pH | 3 – 11 | 3 – 11 | 3 – 11 | 3 – 11 | 3 – 11 | |
| Height | mm | 1650 | 1650 | 1650 | 1650 | 1650 |
| Width | mm | 500 | 500 | 660 | 660 | 660 |
| Depth | mm | 500 | 500 | 690 | 690 | 690 |
| Weight approx | ca. kg | 135 | 135 | 150 | 180 | 195 |
| IWE Promax Range Reverse Osmosis Water Filter | Promax 2000 | Promax 2500 | Promax 3000 | Promax 3500 | |
| Permeate flow rate | l/h | 2000 | 2500 | 3000 | 3500 |
| Min. salt rejection | % | 97 | 97 | 97 | 97 |
| Recovery | % | 80 | 80 | 80 | 80 |
| Operating pressure | bar | 14 | 14 | 14 | 14 |
| Membrane element / number | 4040 / 6 | 4040 / 8 | 4040 / 10 | 4040 / 12 | |
| Voltage | V/Hz | 3 x 400/50 | 3 x 400/50 | 3 x 400/50 | 3 x 400/50 |
| Motor power | kW | 4.0 | 4.0 | 4.0 | 4.0 |
| Pre-fusing | A | 20 | 20 | 20 | 20 |
| Feedwater connection | R | 32 | 32 | 32 | 32 |
| Permeate/concentrate connection | DN | 32 | 32 | 32 | 32 |
| Conductivity range | μS/cm | 2 – 200 | 2 – 200 | 2 – 200 | 2 – 200 |
| Min. / max. feed water pressure | bar | 2 / 6 | 2 / 6 | 2 / 6 | 2 / 6 |
| Min. / max. feed water temp | °C | 5 / 35 | 5 / 35 | 5 / 35 | 5 / 35 |
| Max. ambient temperature | °C | 40 | 40 | 40 | 40 |
| pH | 3 – 11 | 3 – 11 | 3 – 11 | 3 – 11 | |
| Height | mm | 1750 | 1750 | 1750 | 1750 |
| Width | mm | 2500 | 2500 | 2500 | 2500 |
| Depth | mm | 700 | 700 | 700 | 700 |
| Weight approx | ca. kg | 800 | 850 | 900 | 950 |
| IWE Promax Range Reverse Osmosis Water Filter | Promax 8 4300 | Promax 8 5400 | Promax 8 7000 | Promax 8 8000 | Promax 8 9500 | Promax 8 12000 | |
| Permeate flow rate | l/h | 4300 | 5400 | 7000 | 8000 | 9500 | 12000 |
| Min. salt rejection | % | 97 | 97 | 97 | 97 | 97 | 97 |
| Recovery | % | 75 - 80 | 75 - 80 | 75 - 80 | 75 - 80 | 75 - 80 | 75 - 80 |
| Operating pressure | bar | 13.5 | 13.0 | 13.5 | 13.0 | 13.5 | 12.5 |
| Membrane element / number | 8040 /3 | 8040 /4 | 8040 /5 | 8040 /6 | 8040 /7 | 8040 /9 | |
| Voltage | V/Hz | 3 x 400/50 | 3 x 400/50 | 3 x 400/50 | 3 x 400/50 | 3 x 400/50 | 3 x 400/50 |
| Motor power | kW | 5.5 | 5.5 | 7.5 | 11 | 11 | 11 |
| Pre-fusing | A | 16 | 16 | 20 | 25 | 25 | 25 |
| Feedwater connection | R | 40 | 40 | 40 | 50 | 50 | 50 |
| Permeate/concentrate connection | DN | 40 | 40 | 40 | 50 | 50 | 50 |
| Conductivity range | μS/cm | 1 – 200 | 1 – 200 | 1 – 200 | 1 – 200 | 1 – 200 | 1 – 200 |
| Min. / max. feed water pressure | bar | 2 / 7 | 2 / 7 | 2 / 7 | 2 / 7 | 2 / 7 | 2 / 7 |
| Min. / max. feed water temp | °C | 5 / 35 | 5 / 35 | 5 / 35 | 5 / 35 | 5 / 35 | 5 / 35 |
| Max. ambient temperature | °C | 45 | 45 | 45 | 45 | 45 | 45 |
| pH | 3 – 12 | 3 – 12 | 3 – 12 | 3 – 12 | 3 – 12 | 3 – 12 | |
| Height | mm | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 |
| Width | mm | 2600 | 2600 | 2600 | 2600 | 2600 | 2600 |
| Depth | mm | 850 | 850 | 850 | 850 | 850 | 850 |
| Weight approx | ca. kg | 500 | 550 | 650 | 750 | 850 | 950 |
OPTIONAL EXTRAS
- Power Saving
- Grundfos Inverters
- SMS Compatible
- Sealed Unit
- Leak Detection
- Auto Shut Off
- SMS Compatible
- Manufactured in the UK
- In built level switches
- 100 Ltr Capacity
- Start / Stop Signal
- Interfaces directly with RO
- Stainless Steel Skid Option
