Rainwater Harvesting – Commercial Filters  – Retention Filter XL



RETENTION FILTER XL
Retention Filter XLTechnical Data
How it WorksDimensions



Technical Data

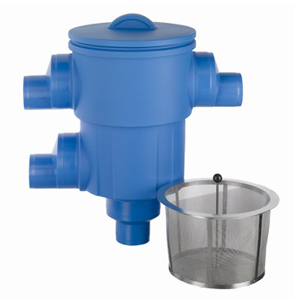

Rainwater Harvesting Filter - Retention Filter XL

Product Code: 1000675

Connection inlet: 2 x DN 150/ DN 200.Outlet to rainwater tank: DN 150/ DN 200.

Emergency overflow or additional inlet: DN 150/ DN 200.

Connection capacity for roof areas up to:800 m²/ 1200 m².

Housing material: Polyethylene.

Material filter basket: Stainless steel.

Mesh size: 0.55 mm.

Diameter: 785 mm.

Height: 815 mm.Weight: 10 kg.

As this is a Retention filter, there is a significant risk of colour being generated in to the storage tank- 3P do not recommend use of Retention filter for any properties where water is reused in buildings.
