Rainwater Harvesting – Retention Filter Technical Data

You are here : Home | Products & Systems Water Recycling Rainwater Harvesting & Reuse | Filters | Retention Filter


Rainwater Harvesting – In Tank Filters  –  Retention Filter



Retention FilterTechnical Data
How it WorksDimensions

Technical Data

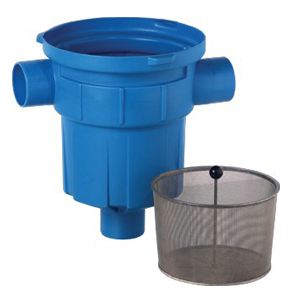

Rainwater Harvesting Filter - Retention Filter

Filter according to DIN 1989-2, Type B
Connection inlet: DN 100 (110mm OD)
Outlet into rainwater tank: DN 100 (110mm OD)
Emergency overflow or additional inlet: DN 100 (110mm OD)

Connection capacity for roof areas up to 200 m².

Housing material: Polyethylene

Material filter basket: Stainless Steel 1:4301

Mesh size: 0.55mm

Weight: 2.8 kg
