Cintropur Centrifugal Filter NW800 – Technical Data
| NW 800 | |||
 | Cintropur Centrifugal Filter NW800 | | NW 800 Technical Data |

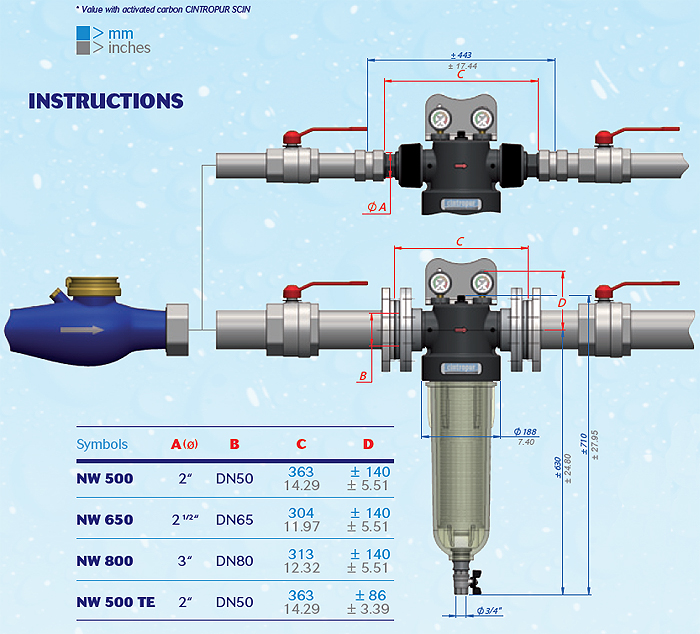

| NW 800 Assembly Instructions | | NW 800 Replacement Filter Sleeves |
| NW 800 Spares & Parts | ||
| Filter type | NW 500 | NW 650 | NW 800 | NW 500 TE |
| Diameter of pipe | 2” | 2 1/2” | 3" | 2” |
| Average flow rate : m3/h | 18 | 25 | 32 | 2* |
| Working pressure : bar | 10 | 10 | 10 | 10 |
| Max. operating pressure : bar | 16 | 16 | 16 | 16 |
| Max. operating temp °C | 50° C | 50° C | 50° C | 50° C |
| Weight : Kg | 6.4 | 7 | 7.4 | 5.6 |
| Standard filter sleeve | 25 μ | 25 μ | 25 μ | - |
| Available volume : Ltr | - | - | - | 4.85 |
| Filtration Surface : | 1 288 | 1 288 | 1 288 | - |
