Rainwater Harvesting – Commercial Filters  – Volume Filter VF6

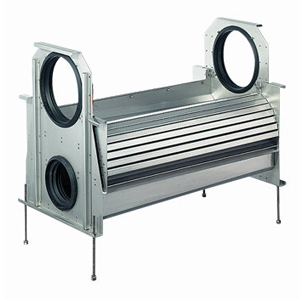

VOLUME FILTER VF6
Volume Filter VF6Technical Data
How it WorksDimensions



Technical Data

Rainwater Harvesting Filter - Volume Filters VF6

Product Code: 1000900

Filter according to DIN 1989-2, Typ C

Connection inlet: 2 x DN 250

Outlet into the storage: DN 200

Outlet into the sewer: DN 250

Height difference between inlet and outlet 320 mm.

Material Filter body: stainless steel 4016

Material Filter sieve: stainless steel 1.4301

Mesh size: 0.4 x 1 mm

Legs = Thread rods M10 with screw nut made of stainless steel, Length 250 mm

Weight: 39.5 kg
