Testomat Eco Technical Data

On-line analysis unit to monitor a selected range of water values

The Testomat® ECO  automatically determines residual/total water hardness via titration.

Ideal for monitoring water quality of water treatment, water blending and drinking-water plants.

Performance feature of the Testomat® ECO:

  • Menu-driven, programmable functions in clear LCD text display
  • Programmable hardness unit in °dH, °f, ppm CaCO3 , mmol/l

Measuring range:

ParameterReagent type°dH°fppm CaCO3mmol/l
Water hardnessTH 20050.05 - 0.500.09 - 0.890.89 - 8.930.01 - 0.09
Water hardnessTH 20250.25 - 2.500.45 - 4.484.47 - 44.70.04 - 0.45
Water hardnessTH 21001.0 - 10.01.79 - 17.917.9 - 1790.18 - 1.79
Water hardnessTH 22502.5 - 25.04.48 - 44.844.8 - 4480.45 - 4.48
  • Accurate titration via piston-dosing pump
  • Reliable low maintenance operation
  • Minimal reagent and water consumption
  • Two adjustable limit values with programmable switch functions

Analysis initiation:

  • automatic time set intervals (0 – 99 minutes)
  • quantity-dependent (contact- or turbine water meter)
  • external analysis STOP
  • Output terminal for alarm (fault messages) e. g. dirty measuring chamber or low reagent level
  • Monitoring of an analysis run and error messages, e. g. low water-pressure
  • Reagent storage bottle 500 ml for extended operating periods
  • Analog terminal 0/4 – 20 mA

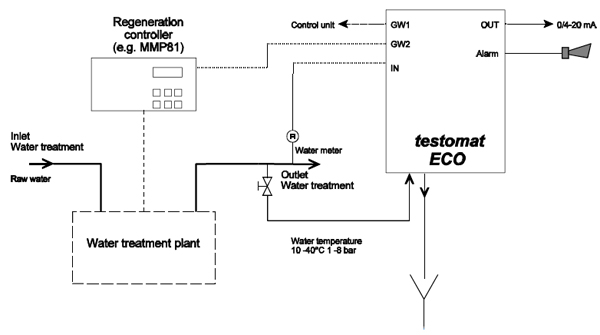

Testomat Eco Diagram

Power supply230 V or 24 V ± 10 %, 50 - 60 Hz
Power consumptionmax. 30 VA
Degree of protectionIP 65
Protection classI
Ambient temperature10 - 45 °C
Water temperature10 - 40 °C
Operating pressure0.1 - 3 bar = 104 - 3 x 105 Pa
With optional pressure regulator1 - 8 bar = 105 - 8 x 105 Pa
Dimensions (W x H x D)380 x 480 x 280 mm
Weightapprox. 9.5 kg

All parts in contact with water or indicator liquid are of corrosion resistant material
