Rainwater Harvesting – In Tank Filters  – Sinus Filter

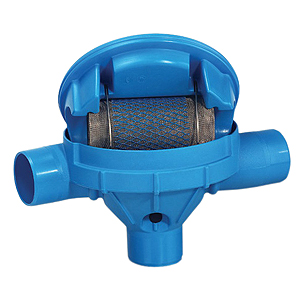

SINUS FILTER
Sinus FilterTechnical Data
How it WorksDimensions



Technical Data

Rainwater Harvesting Filter - Sinus Filter

Filter according to DIN 1989-2, Type C

Connection inlet: DN 100 (110mm OD)
Outlet into tank: DN 100 (110mm OD)
Outlet into sewer: DN 100 (110mm OD)

Height difference between rainwater inlet and outlet 0 mm (zero).

Housing material: Polyethylene

Filter cartridge: Stainless steel
Material Poly-Net: Polyethylene

Mesh size: 0.7 x 1.7 mm

Weight: 2.1 kg
