Cooling Tower Controller – AS3035

Cooling Tower Controller AS3020

    Price range: £491.42 through £590.81



    To request a call back regarding this product please complete the form below.






        SKU: -AS3035

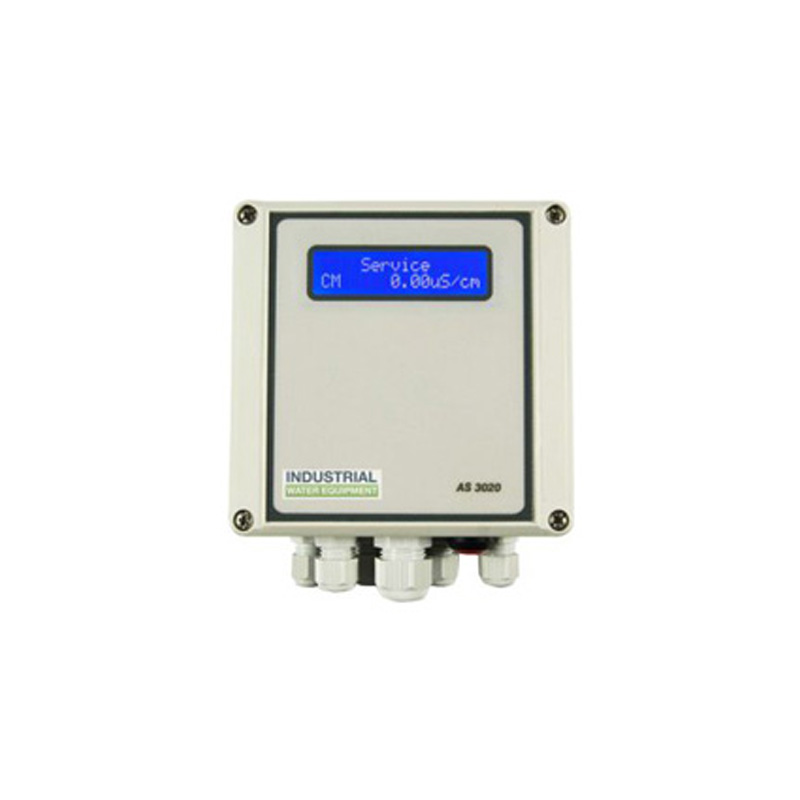

          Cooling Tower Controller – AS3020

          Cooling Tower Controller – AS3020 (1 conductivity meter, man. Temp. Comp. 4 inputs and 3 outputs).
          ModelPower in / out
          AS3020-124/24, 115/115 or 230/230 VAC
          AS3020-2115/24 or 230/24 VAC
          Cooling Tower Controller – AS3020IF (1 conductivity meter, man. Temp. Comp. 5 inputs and 5 outputs).
          AS3020IF-124/24, 115/115 or 230/230 VAC
          AS3020IF-2115/24 or 230/24 VAC
          • User operated programming using double row of illuminated LCD display
          • Display text in English, French, German or Dutch
          • Adaption to user specific requirements by means of options programmable on site
          • Extensive status report facility using information button
          • 2 inputs : tank full and tank empty
          • 2 powered relay outputs: Inlet valve (fused 8A), Flush valve (fused 8A)
          • 1 relay output (dry contact) : Alarm
          • Secure from power failure as all data is stored long-term without battery
          • Efficient micro controller with watchdog, illegal operation code and cycle monitoring
          • Safeguarded from EMC by galvanic separation between micro controller and in- and output circuits and also by additional interference suppression filter
          • Available for wall mounting
          • Available (input /output) : 12VDC/12VDC, 24VDC/24VDC, 24VAC/24VAC, 115VAC/115VAC, 230VAC/230VAC
          Please Select

          AS3020-1 – 24/24 VAC, AS3020-1 – 115/115 VAC, AS3020-1 – 230/230 VAC, AS3020-2 – 115/24 VAC, AS3020-2 – 230/24 VAC, AS3020IF-1 – 24/24 VAC, AS3020IF-1 – 115/115 VAC, AS3020IF-1 – 230/230 VAC, AS3020IF-2 – 115/24 VAC, AS3020IF-2 – 230/24 VAC
