Rainwater Harvesting – In Tank Filters  – Siphon Filter



SIPHON FILTER
	Siphon Filter		Technical Data
	How it Works		Dimensions

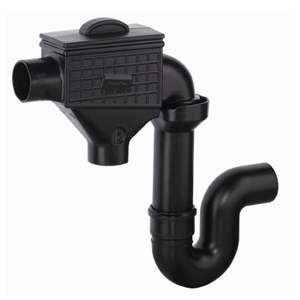

Siphon Filter

Small and compact rainwater filter for the installation in rainwater tanks made of plastics or concrete.

Due to the inclined angle of the stainless steel filter sieve and its very smooth surface structure the dirt is rinsed to waste. With this filter, the overflow siphon with odour trap is already integrated.

The height difference between inlet and outlet can be adjusted between 135mm and 340mm.

The overflow is twistable to 90°.

Retro-fitting with the 3P Back-washing Device is possible. The 3P Sinus Filter is ideally suited for use in conjunction with the 3P Calmed Inlet.

Low maintenance, self cleaning, cleaning frequency depends upon the solid loading the rainwater.

Connection capacity for roof areas up to 213 m².

All connections DN 100 (110mm OD)

Adjustable Height difference of 135mm – 340mm between rainwater inlet and waste water outlet.

Mesh size of stainless steel filter 0.7 x 1.7 mm.

The cleaned water can be used in washing machines, toilet flushing and garden watering, in homes, in commerce, in public buildings and in industry.
