Rainwater Harvesting – In Tank Filters – Compact Filter
|How it Works||Dimensions|

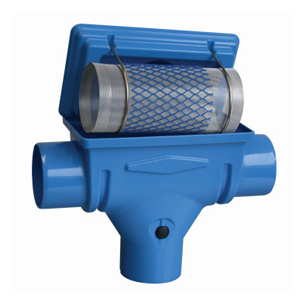

3P Technik’s smallest rainwater filter for installation within rainwater tanks.
The 3P Compact Filter is ideal where there is little room and no height difference available between inlet and outlet.
Optional 3P Back-washing Device. The 3P Compact Filter is ideally suited for use in conjunction with a 3P Overflow Siphon and the 3P Calmed Inlet.
Low maintenance, self cleaning, depending on the level of solids in the incoming rainwater.
Connection capacity for roof areas up to 150 m²
All connections DN 100 (110mm OD).
No height difference between inlet and outlet.
Mesh size of filter cartridge 0.7 x 1.7 mm.
The cleaned water can be used in washing machines, toilet flushing and garden watering, in homes, in commerce, in public buildings and in industry.
