DEMINERALISATION

VMB range - 1st unit

If this is your 1st cylinder choose this option.

demineralisation

VMB 1 – Flow Rate 750 lph

£238.92 - £199.10 (exc. VAT)

VMB For High Quality Water

VMB 2 – Flow Rate 1500 lph

£327.36 - £272.80 (exc. VAT)

VMB For High Quality Water

VMB 3 – Flow Rate 2000 lph

£435.60 - £363.00 (exc. VAT)

VMB For High Quality Water

VMB 4 – Flow Rate 3000 lph

£752.40 - £627.00 (exc. VAT)

VMB For High Quality Water

VMB 5 – Flow Rate 3500 lph

£979.44 - £816.20 (exc. VAT)

VMB range - exchange unit

If you already have one of our cylinders to exchange select this option.

VMB Exchange For High Quality Water

VMB 1 Exchange – Flow Rate 750 lph

£155.76 - £129.80 (exc. VAT)

VMB Exchange For High Quality Water

VMB 2 Exchange Unit – Flow Rate 1500 lph

£225.72 - £188.10 (exc. VAT)

VMB Exchange For High Quality Water

VMB 3 Exchange Unit – Flow Rate 2000 lph

£347.16 - £289.30 (exc. VAT)

VMB Exchange For High Quality Water

VMB 4 Exchange Unit – Flow Rate 3000 lph

£561.00 - £467.50 (exc. VAT)

VMB Exchange For High Quality Water

VMB 5 Exchange Unit – Flow Rate 3500 lph

£712.80 - £594.00 (exc. VAT)

VMB

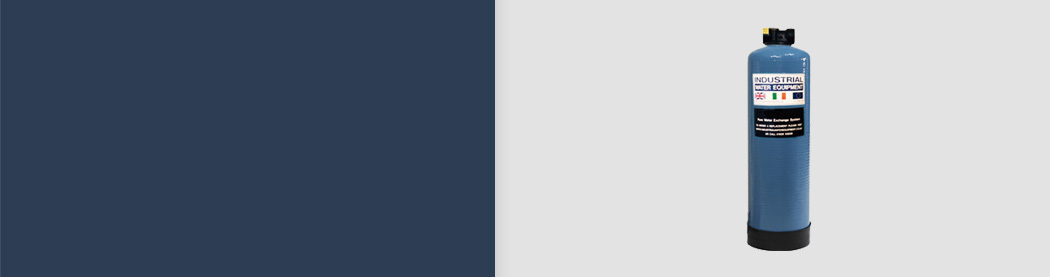

Our VMB range of Demineralised or Deionisation pure water cylinders use a high quality mixed bed resin for direct purification or water.

Passage of raw water at the correct flow rates will achieve complete (99.9%) of dissolved solids.

The expected outlet quality (dependent upon reasonable quality feed) would be between 1 micro siemen and 0.1 micro siemen.

Main Benefits

  • Our systems require no on-site installations.
  • Our systems require no drain connections.
  • Our systems have no working parts, therefore no maintenance is required.

How it works

Step 1 : Choose what range of Exchange system you require and which size unit suits your needs.

Step 2 : Order your first unit online which will be delivered next day.

Step 3 : When the unit begins to exhaust order an exchange unit. We will collect your old unit when we deliver your replacement.

Need Help?

Unsure which one of our cartridge exchange systems best suits your requirements? Please contact us on

01629 55839

We are more than happy to help.



TECHNICAL DATA

VMB-1VMB-2VMB-3VMB-4VMB-5
Flow Rate Max750 l/h1500 l/h2000 l/h3000 l/h3500 l/h
Outlet QualityTypically 12+ megOhm when fed with <100 us/cm water = 0.08ms
Media Volume15ltrs25ltrs40ltrs75ltrs100ltrs
*Capacity of Unit2000 ltrs2500 ltrs5000 ltrs7500 ltrs10,000 ltrs
Min Max Pressure2-8 Bar2-8 Bar2-8 Bar2-8 Bar2-8 Bar
Vessel Height/Dia8" x 35"10" x 35"10" x 54"13" x 54"14" x 65"
Unit Weight Kg20304890115
IL / OL Connection1" BSP F/M1" BSP F/M1" BSP F/M1" BSP F/M1" BSP F/M
* The Capacity of unit is based on an incoming water feed of 200ppm TDS

ProductUseMediaTypical Applications
VMBFor high quality waterVirgin mixed bed resinReverse Osmosis polishing
Demin water polishing
Glass cleaning
High quality general purpose applications
NMBFor very high quality waterNuclear grade resinPrimary polishing for nuclear applications
Clean up systems for Nuclear applications
VHPFor ultra high quality waterUltra high purity resinElectronics Industry
Very High quality water applications
ARCFor chlorine removalActivated carbonDechlorinisation
Ozone Removal
Removal of Taste
Removal of odour
Elimination of dissolved pollutants
BCFor colour, metal and organic removalBone charcoalRemoval of colour from peaty water (meets EC/UK regulation for potable water)
Removal of heavy metals
Electro plating effluent treatment
Floride removal
SCEFor hardness, calcium and magnesiumWater softener resinMagnesium removal
Calcium removal
Hardness removal
Scale forming mineral removal
BKEFor bespoke applicationsVariousBespoke pure water systems for any applications

OPTIONAL EXTRAS

Mixed Bed Controller

The unit type EC3020 is universal applicable for automatic monitoring and control of single or twin mixed bed cartridge filters where filter cartridge should be exchanged by hand.

Water Filter / Softener Controller – EC3020 (Incl conductivity meter, 3 inputs and 3 outputs).
ModelPower in / out
EC302024/24, 115/115 or 230/230 VAC
EC3020DC12 or 24 VDC

£368.46 - £307.05 (exc. VAT)

Mixed Bed Controllers – EC3020

Water Filter / Softener Controller – EC3020

£329.56 - £274.63 (exc. VAT)

Industrial Water Equipment Ltd have developed a low cost Inline TDS Meter which simply clips onto the outlet from our cylinders and enables you to monitor the water quality from the outlet of your system.

Inline TDS Meter

TDS Meter

£105.60 - £88.00 (exc. VAT)
