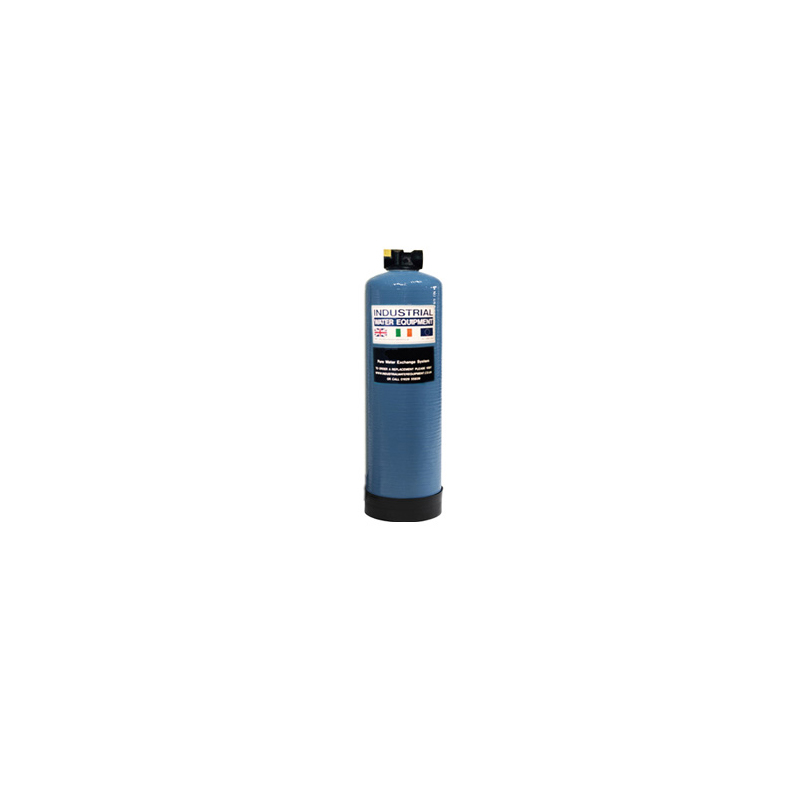

VMB Demineralised or Deionisation pure water cylinders

VMB 5 Exchange Unit – Flow Rate 3500 lph

    £794.08 - £661.73 (exc. VAT)


    To request a call back regarding this product please complete the form below.





        SKU: VMB-5-E

          VMB 5 Exchange Unit  – Flow Rate 3500 lph

          VMB Cartridge Exchange Systems

          Our VMB range of Demineralised or Deionisation pure water cylinders use a high quality mixed bed resin for direct purification or water.

          Passage of raw water at the correct flow rates will achieve complete (99.9%) of dissolved solids.

          The expected outlet quality (dependent upon reasonable quality feed) would be between 1 micro siemen and 0.1 micro siemen.

          Main Benefits

          • Our systems require no on-site installations.
          • Our systems require no drain connections.
          • Our systems have no working parts, therefore no maintenance is required.

          VMB-1VMB-2VMB-3VMB-4VMB-5
          Flow Rate Max750 l/h1500 l/h2000 l/h3000 l/h3500 l/h
          Outlet QualityTypically 12+ megOhm when fed with <100 us/cm water = 0.08ms
          Media Volume15ltrs25ltrs40ltrs75ltrs100ltrs
          *Capacity of Unit1500 ltrs2500 ltrs5000 ltrs7500 ltrs10,000 ltrs
          Min Max Pressure2-8 Bar2-8 Bar2-8 Bar2-8 Bar2-8 Bar
          Vessel Dia/Height8" x 35"10" x 35"10" x 54"13" x 54"14" x 65"
          Unit Weight Kg20304890115
          IL / OL Connection1" BSP F/M1" BSP F/M1" BSP F/M1" BSP F/M1" BSP F/M
          * The Capacity of unit is based on an incoming water feed of 200ppm TDS
