Pure Water Exchange – BC for Colour, Metal & Organic Removal

You are here : Home | Products & Systems | Pure Water Exchange Systems | BC for Colour, Metal & Organic Removal


Pure Water Exchange Systems – BC for Colour, Metal & Organic Removal

Pure Water Exchange BC



BC Range Natural Bone Charcoal

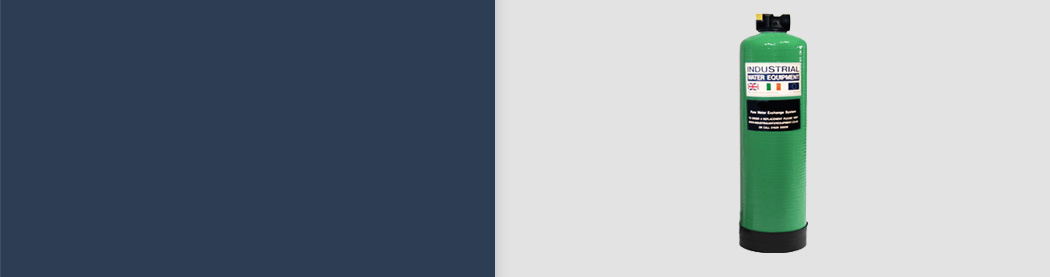

Our BC Range cartridge Exchange Systems are filled with W2060 Natural Bone Charcoal.

Natural Bone Charcoal is an excellent general adsorbent primarily used to remove organic and metal species.

Other uses include the removal of chlorine and fluorine from water.

W2060 natural Bone Charcoal meets EU/UK regulation for the production of drinking water.

Main Benefits

  • Our systems require no on-site installations.
  • Our systems require no drain connections.
  • Our systems have no working parts, therefore no maintenance is required.

How it Works

The outlet treated water is filtered though a bed of Natural Bone Charcoal that removes impurities from the feed water adsorbing them into the large pore area.The impurities are adsorbed within a mass transfer zone that slowly moves down the bed as each layer of the bed becomes saturated with the impurities.

When the mass transfer zone reaches the base of the unit the system will be exhausted and will need to be replaced. This will depend upon the flow and level of impurities to be removed.

Once the Natural Bone Charcoal Media has reached capacity the outlet water quality will decrease. This decrease can be measured by an increase in colour or metal content. At this stage simply order an exchange unit and we will deliver the new cylinder and remove the old exhausted unit.



BC-1BC-2BC-3BC-4BC-5
Flow Rate Max750 l/h1500 l/h2000 l/h3000 l/h3500 l/h
Outlet QualityDependent upon incoming water analysis please call for details
Media Volume15ltrs25ltrs40ltrs75ltrs100ltrs
*Capacity of Unit7500ltrs12500ltrs20,000ltrs37,500ltrs50,000ltrs
Min Max Pressure2-8 Bar2-8 Bar2-8 Bar2-8 Bar2-8 Bar
Vessel Height/Dia8" x 35"10" x 35"10" x 54"13" x 54"14" x 65"
Unit Weight20kg30kg48kg90kg115kg
IL / OL Connection1" BSP F/M1" BSP F/M1" BSP F/M1" BSP F/M1" BSP F/M
* The Capacity of unit is dependent on the quality of the incoming water feed
ImageNamePrice Inc VATBuy
BC 1 For Colour Metal and Organic RemovalBC 1 For Colour Metal and Organic Removal£248.16
248.16
BC 2 For Colour Metal and Organic RemovalBC 2 For Colour Metal and Organic Removal£340.56
340.56
BC 3 For Colour Metal and Organic RemovalBC 3 For Colour Metal and Organic Removal£469.92
469.92
BC 4 For Colour Metal and Organic RemovalBC 4 For Colour Metal and Organic Removal£789.36
789.36
BC 5 For Colour Metal and Organic RemovalBC 5 For Colour Metal and Organic Removal£1,029.60
1029.60
ImageNamePrice Inc VATBuy
BC 1 Exchange Unit For Colour Metal and Organic RemovalBC 1 Exchange Unit For Colour Metal and Organic Removal£163.68
163.68
BC 2 Exchange Unit For Colour Metal and Organic RemovalBC 2 Exchange Unit For Colour Metal and Organic Removal£240.24
240.24
BC 3 Exchange Unit For Colour Metal and Organic RemovalBC 3 Exchange Unit For Colour Metal and Organic Removal£340.56
340.56
BC 4 Exchange Unit For Colour Metal and Organic RemovalBC 4 Exchange Unit For Colour Metal and Organic Removal£599.28
599.28
BC 5 Exchange Unit For Colour Metal and Organic RemovalBC 5 Exchange Unit For Colour Metal and Organic Removal£762.96
762.96

Optional Extras

Mixed Bed Controller

The unit type EC3020 is universal applicable for automatic monitoring and control of single or twin mixed bed cartridge filters where filter cartridge should be exchanged by hand.

Water Filter / Softener Controller – EC3020 (Incl conductivity meter, 3 inputs and 3 outputs).
ModelPower in / out
EC302024/24, 115/115 or 230/230 VAC
EC3020DC12 or 24 VDC
ImageNamePrice Inc VATBuy
Water Filter / Softener Conductivity Controller – EC3020DCWater Filter / Softener Conductivity Controller – EC3020DC£368.46
368.46
Water Filter / Softener Controller – EC3020Water Filter / Softener Controller – EC3020£329.56
329.56

Inline Water Quality TDS Meter

Industrial Water Equipment Ltd have developed a low cost Inline TDS Meter which simply clips onto the outlet from our cylinders and enables you to monitor the water quality from the outlet of your system.

ImageNamePrice Inc VATBuy
TDS MeterTDS Meter£105.60
105.60
