Rainwater Harvesting – In Tank Filters  – Patronen Filter



PATRONEN FILTER
Patronen FilterTechnical Data
How it WorksDimensions



Technical Data

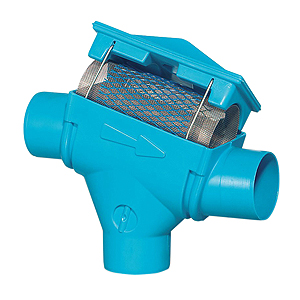

Rainwater Harvesting Filter - Patronen Filter

Filter according to DIN 1989-2, Type C

Connection inlet: DN 100 (110mm OD)
Outlet into tank: DN 100 (110mm OD)
Outlet into sewer: DN 100 (110mm OD)

Height difference between rainwater inlet and outlet just 66 mm.

Housing material: Polyethylene

Filter cartridge: Stainless steel
Material Poly-Net: Polyethylene

Mesh size: 0.7 x 1.7 mm

Weight: 1.4 kg
