Oil Skimmer – Mighty Mini
| MIGHTY MINI OIL SKIMMER | |||
 | Mighty Mini | | Advantages |
| Features | | Specifications |

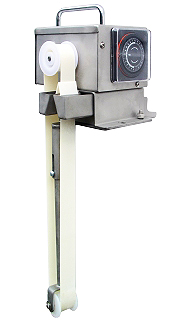

Mighty Mini Oil Skimmer
[su_spacer size=”30″]| Model | Belt Width | Belt Length | RPM / Amps | Volts Hz | Phase |
| MM100ST-06 | 1" | 6" | 30 RPM - 1.5 -2.0A | 115 - 60Hz | 1 PH |
| MM100ST-12 | 1" | 12" | 30 RPM - 1.5 -2.0A | 115 - 60Hz | 1 PH |
| MM100ST-18 | 1" | 18" | 30 RPM - 1.5 -2.0A | 115 - 60Hz | 1 PH |
| MM100ST-24 | 1" | 24" | 30 RPM - 1.5 -2.0A | 115 - 60Hz | 1 PH |
| MM200ST-06 | 2" | 6" | 30 RPM - 1.5 -2.0A | 115 - 60Hz | 1 PH |
| MM200ST-12 | 2" | 12" | 30 RPM - 1.5 -2.0A | 115 - 60Hz | 1 PH |
| MM200ST-18 | 2" | 18" | 30 RPM - 1.5 -2.0A | 115 - 60Hz | 1 PH |
| MM200ST-24 | 2" | 24" | 30 RPM - 1.5 -2.0A | 115 - 60Hz | 1 PH |
The ideal solution to unwanted oil in coolants and parts washers therefore extending the life of coolant and wash water! The Mighty Mini SST Oil Skimmer can remove 1 to 2 gallons of medium weight oil per hour (depending on belt selection ). Its stainless steel construction enables it to operate in harsh chemicals and heat while its integrated timer lets it run only when needed. The Mighty Mini SST Oil Skimmer is designed to minimise water content in the disposed oil; however the optional Oil Concentrator® will further reduce the water content in the oil to less than 2%. This provides tremendous cost saving if the oil is to be recycled or disposed.
It is compact making efficient use of available space… it fits underneath most CNC machines as well as inside parts washers. The small footprint even allows the Mighty Mini SST Oil Skimmer to fit through the bung hole of a 55 gallon drum! With belts specifically selected for your application available in lengths of 6, 12, 18 and 24″. This Oil Skimmer has endless application possibilities.
The Mighty Mini SST Oil Skimmer weighs only 8 pounds and the ease of installation make this skimmer the most versatile of our line. Use it here today and there tomorrow as it installs in just seconds.
Highlights
- A 1″ or 2″ continuous belt of corrosion resistant steel or elastomer
- Oil discharge via a 3-foot 3/4-inch diameter clear plastic hose with clamp
- Deep removable trough.
- 316 Stainless Steel Glass Beaded Finish
- 24 hour timer
- 8-foot grounded power cord w/plug
- Fractional fan-cooled gear motor
- Removes one or two gallons of medium weight oil per hour
