Cintropur Centrifugal Filter NW25

You are here : Home | Products & Systems | Water Filters | Centrifugal Filters | Centrifugal Filter Housings | NW25 – 1″

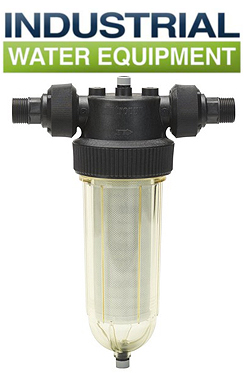

Cintropur Centrifugal Filter NW25



Cintropur Centrifugal Filter NW25 1"NW25 Accessories
NW25 Technical DataNW25 Spares & Parts
NW25 Assembly InstructionsNW25 Replacement Filter Sleeves



ImageNamePriceBuy
Centrifugal Filter - 1"Centrifugal Filter - 1"£70.00
70.00



Inlet / Outlet Connection Size – 1″

NW 26 Centrifugal Water FilterMade entirely from top quality synthetic material, CINTROPUR filters are ideal for use with food products and drinking water. The CINTROPUR vane changes the liquid flow using centrifugal motion, forcing the larger particles down into the lower bowl,
depending on the chosen filter sleeve micron-size.

Residential

  • Protection of sanitary networks supplied with domestic water, rainwater or well water.
  • Filtration of water before softener, reverse osmosis or treatment by ultraviolet.

Industrial

  • Protection of sanitary networks, machine tools and all industrial machinery for water treatment.
  • Filtration of water before high pressure cleaning machines (100 to 200 bar / 1500 to 3000 psi) and very high pressure cleaning machines (1500 to 2500 bar / 21000 to 35000 psi).

Agricultural

  • Filtration of watering (spraying) installations.
  • Filtration of water for animals.
  • Filtration of rainwater and well water.

Advantages

  • High and constant flow rate.
  • Low pressure drop.
  • Centrifugal prefiltration with a cyclonal effect.
  • Robustness and reliability.
  • Fast and easy flushing out.
  • Permanent visual control of the filter sleeve (transparent bowl).
  • Exclusive system, ecological and not expensive (filter sleeve).
  • Avg. flowrate dP=0.2 bar: 5.5m3/hr
  • Max working pressure: 16 bar
  • Maximum Water Temp: 50ºC
  • Filter sleeve fitted: 25u

Complete water filter unit with centrifugal prefiltration

Made entirely from first quality synthetic material, centrifugal filters are perfectly suitable for food products and as drinking water filters.

Applications

Industry : Protection of sanitary fittings and machine tools.
Agriculture : Filtration of watering (spraying) installations ; Filtration of water for animals. Domestic/residential: Rainwater filter and whole house water filter for well water.
