Calpeda GQG Range
Submersible pumps with high power grinder, with horizontal flanged and threaded delivery port.
FLOW
3 / 17 mc/h
HEAD
4 / 25 m
POWER
0.9 / 1.5 kW
Construction: Submersible pumps with high power grinder, with horizontal flanged and threaded delivery port (DN 32 – G 1 1/2”).Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.
GQG TECHNICAL DATA
Suitable for pumping waste water containing long filamentous, paper and textile materials and organics.They are particularly suitable for use in domestic, residential and industrial installations.Solid passage 6 mm
Calpeda GQN Range
Single-impeller submersible pumps, (with two-passage) with channels impeller with vertical threaded delivery port.
FLOW
6 / 48 mc/h
HEAD
1.4 / 16.3 m
POWER
0.9 / 1.5 kW
Construction : Single-impeller submersible pumps, (with two-passage) with channels impeller with vertical threaded delivery port (G 2”).Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.
GQN TECHNICAL DATA
– For domestic or industrial waste water, dirty water with solids up to 50 mm grain size, – For liquids which are compatible with the pump materials.- For draining rooms or or emptying tanks.- Extraction of water from ponds, streams or pits and for rainwater collection.
Calpeda MP Range
Multi-stage centrifugal submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
FLOW
1 / 8 mc/h
HEAD
2 / 31.5 m
POWER
0.45 / 0.9 kW
Construction : Multi-stage centrifugal submersible pumps in chrome-nickel stainless steel, with vertical delivery port. Motor cooled by the pumped water passing between the motor jacket and the external jacket.Double shaft seal with oil chamber.
MP TECHNICAL DATA
– For clean water containing solids up to 2 mm grain size.- For draining rooms or or emptying tanks.- Extraction of water from ponds, streams or pits and for rainwater collection.- For irrigation purposes.- For outdoor use a power supply cable of not less than 10m should be used in accordance with: EN 60 335-2-41.

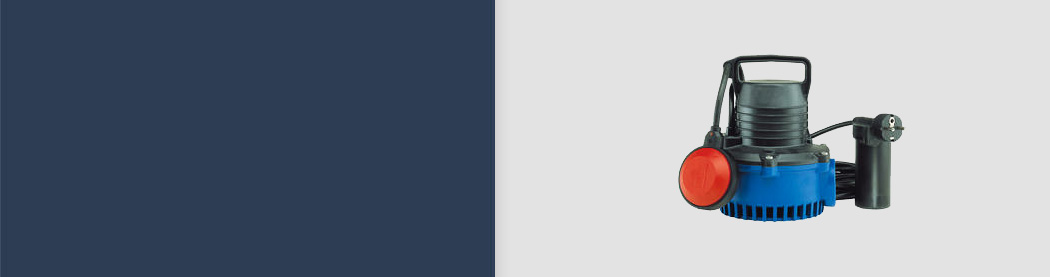

Calpeda GM 10 Range
Submersible drainage pump constructed with composite polymers developed especially for this product.
FLOW
3 / 12 mc/h
HEAD
2.2 / 7.5 m
POWER
0.3 kW
Construction : Submersible drainage pump constructed with composite polymers developed especially for this product.
These new rustproof materials are resistant to corrosion, indeformable at maximum temperature differentials in the pump and motor and resistant to internal and external strain.
Shaft of chrome steel AISI 430. Three lip seals in NBR.
Minimum dimension and high levels of performance, for use in many different applications, for flow rates up to 200 liters/min. With float switch for automatic start/stop.
GM 10 TECHNICAL DATA
– For clean or slightly dirty water.
– For draining flooded rooms or tanks.
– Extraction of water from ponds, flowing water or pits for collection of rain water.
– For irrigation purposes.
– For use outdoor, the power supply cable shall have a length not less than 10 m.
Calpeda GXR, GXV Range
Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port and with open impeller.
FLOW
1.2 / 13.2 mc/h
HEAD
1.7 / 12.7 m
POWER
0.25 / 0.6 kW
Construction : Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port and with open impeller.
Motor cooled by the pumped water passing between the motor jacket and the external jacket.
Double shaft seal with oil chamber.
Minimum dimension and high levels of performance, for use in many different applications, head up to 12,7 m and flow rates up to 220
GXR, GXV TECHNICAL DATA
– For clean water containing solids up to 10 mm grain size.
– For draining rooms or or emptying tanks.
– Extraction of water from ponds, streams or pits and
for rainwater collection.
– For irrigation purposes.
For outdoor use a power supply cable of not less than 10 m should be used in accordance with: EN 60 335-2-41.
Calpeda GQR Range
Single-impeller submersible drainage pump, with vertical delivery port.
FLOW
3 / 30 mc/h
HEAD
3 / 20 m
POWER
0.45 / 2 kW
Construction : Single-impeller submersible drainage pump, with vertical delivery port, with open impeller.
Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.
GQR TECHNICAL DATA
– For clean water containing solids up to 10 mm grain size.
– For draining rooms or or emptying tanks.
– Extraction of water from ponds, streams or pits and for rainwater collection.
– For irrigation purposes.
Calpeda GQS, GQV Range
Single-impeller submersible pumps, with free-flow (vortex) impeller.
FLOW
3 / 36 mc/h
HEAD
1.8 / 15 m
POWER
0.55 / 2 kW
Construction : Single-impeller submersible pumps, with free-flow (vortex) impeller and with vertical threaded delivery port (G 2”).
Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.
GQS, GQV TECHNICAL DATA
– For domestic or industrial waste water, dirty water with solids up to 50 mm grain size, for liquids which are compatible with the pump materials.
– For draining rooms or or emptying tanks.
– Extraction of water from ponds, streams or pits and for rainwater collection.
Calpeda GX 40 Range
Single-impeller submersible pumps, with free-flow (vortex) impeller.
FLOW
3 / 36 mc/h
HEAD
3 / 12.9 m
POWER
0.55 / 1.2 kW
Construction : Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
GXC: with two-passage impeller.
GXV: with free-flow (vortex) impeller.
Double shaft seal with interposed oil chamber.
GX 40 TECHNICAL DATA
– For clean and dirty water, also containing solids up to 35 mm grain size.
– The GXV free-flow impeller construction is particularly suitable for liquids with a high solid content or with filamentous particles.
– This construction (with smooth surfaces in rolled-stainless steel and easy access for cleaning) is also suitable for certain uses in the food industry.
Calpeda GM 50 Range
Close coupled electric submersible pump.
FLOW
6 / 48 mc/h
HEAD
1 / 17.3 m
POWER
0.75 / 2 kW
Construction : Close coupled electric submersible pumps.
GMC: with single-channel impeller.
GMV: with free-flow (vortex) impeller.
Double mechanical shaft seal with interposed oil chamber, to protect against dry-running.
GM 50 TECHNICAL DATA
– For domestic or industrial waste water, dirty water with solids up to 45 mm grain size for GMC and 50 mm for GMV, for liquids which are compatible with the pump materials.
Calpeda Geotrit, Geoclean, Geocop Range
Macerating pumping system and Lifting station for clear water.
Construction : GEOCLEAN makes the addition of a domestic kitchen or utility room easy even when below or distant from a drain.
The system has a clapet valve and it cannot be used with waste waters.
GEOCLEAN is provided with flexible sleeves, elbow, metal hose clips, plugs.
GEOCOMP
Macerating pumping system. It is possible to install a complete bathroom in a basement conversion or loft extension.
The GEOCOMP macerating system is installed in a case specifically designed for horizontal outlet spigots.
Installed and used correctly, this unit will give consistent and reliable service.
The system has a grinder pump, clapet valve and carbon filter.
GEOCOMP is provided with flexible sleeves, elbow, metal hose clips.
GEOCLEAN
Lifting station for clean water.
GEOCLEAN makes the addition of a domestic kitchen or utility room easy even when below or distant from a drain.
The system has a clapet valve and it cannot be used with waste waters.
GEOCLEAN is provided with flexible sleeves, elbow, metal hose clips, plugs.
GEOTRIT, GEOCLEAN, GEOCOMP TECHNICAL DATA
– GEOTRIT takes waste from a WC and a washbasin.
– GEOCOMP has been designed to pump away the waste water from WC, washbasin, bidet, tube and shower.
– GEOCLEAN is design to handle the evacuation water from a domestic kitchen sink, dishwasher and washing machine – all working at the same time if required. GEOCLEAN also takes waste from a washbasin, a bidet, a tube and a shower.
Calpeda GEO Range
Automatic waste water collecting and lifting station.
Construction : High-density polyethylene tank, resistant to corrosion, with minimum overall dimensions.
– GEO 40 single tank with 40 liter nominal capacity for the installation of a GXRM type.
– GEO 230 single tank with 230 liter nominal capacity for the installation of an electropump type GM 10, GQ, GX or GM series.
– GEO 500 double tank with 500 liter nominal capacity for the installation of two electropumps type GM 10, GQ, GX or GM series.
Pipe kit for electropump connection.
Two possible installation, at ground level or underground.
For underground installation, extentions can be used.
Easy pump access through a cover fixed with screws.
GEO TECHNICAL DATA
– Automatic waste water collecting and lifting stations, to handle domestic, civil and industrial waste water.
– For collecting and lifting clean waste water and rain water.
– For flood drainage.
Calpeda GM Range
A series of submersible pumps with high efficiency hydraulics designed to move slurry, sewage and industrial process fluids.
FLOW
1 / 3000 mc/h
HEAD
3 / 66 m
POWER
1.4 / 84.1 kW
Construction : A series of submersible pumps with high efficiency hydraulics designed to move slurry, sewage and industrial process fluids.
The range covers a wide field of use with head up to 75 m And flows up to 2300 m3/h, with a maximum solid passage up to 140 mm keeping the risk of blockage to a minimum.
Dimensionally designed for heavy demand, even on critical applications.
Explosion proof version on request.
