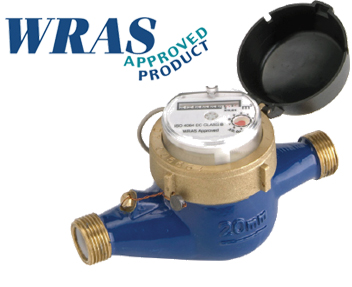

Multi Jet Class B Type Water Meters
- WRAS Approved
- EEC Class B Approved
- Working Pressure: 16 Bar
- Dry Dial
- For cold (30°C) or hot (90°C) water
- Brass Body
- Epoxy Powder Coated
- Real performances exceed EEC and ISO standards
- Counter perfectly sealed (hermetic)
- Protected Rollers
- 5 Black rollers (Cubic Metre) / 3 Red Rollers (Litres)
- Pointer reading for low flows
- Sensitivity index
- For horizontal installation
Multi Jet Class B Type Water Meters for cold water (30ºC) applications
| Part No | Dn Size [mm] | Max Flow [m³/h] | Nominal Flow [m³/h] | Trans Flow [L/h] | Min Flow [L/h] | Pulse Options* [litres per pulse] | Price | |
| S10-D15MJC | 15 | 3 | 1.5 | 120 | 30 | 1-10-100 | £60.00 |  |
| S10-D20MJC | 20 | 5 | 2.5 | 200 | 50 | 1-10-100 | £64.80 | |
| S10-D25MJC | 25 | 7 | 3.5 | 280 | 70 | 10-100 | £115.20 | |
| S10-D32MJC | 32 | 12 | 6 | 480 | 120 | 10-100 | £136.80 | |
| S10-D40MJC | 40 | 20 | 10 | 800 | 200 | 10-100 | £187.20 | |
| S10-D50MJC [screwed] | 50 | 30 | 15 | 1050 | 300 | 10-100 | £292.79 | |
| S10-D50MJC [flanged] | 50 | 30 | 15 | 1200 | 300 | 10-100 | £292.79 | |
Multi Jet Class B Type Water Meters for hot water (90ºC) applications
| Part No | Dn Size [mm] | Max Flow [m³/h] | Nominal Flow [m³/h] | Trans Flow [L/h] | Min Flow [L/h] | Pulse Options* [litres per pulse] | Price | |
| S10-D15MJH | 15 | 3 | 1.5 | 120 | 30 | 1-10-100 | £156.96 | |
| S10-D20MJH | 20 | 5 | 2.5 | 200 | 50 | 1-10-100 | £187.09 | |
| S10-D25MJH | 25 | 7 | 3.5 | 280 | 70 | 10-100 | £222.48 | |
| S10-D32MJH | 32 | 12 | 6 | 480 | 120 | 10-100 | £279.37 | |
| S10-D40MJH | 40 | 20 | 10 | 800 | 200 | 10-100 | £334.45 | |
| S10-D50MJCH [screwed] | 50 | 30 | 15 | 1050 | 300 | 10-100 | £542.38 | |
| S10-D50MJH [flanged] | 50 | 30 | 15 | 1200 | 300 | 10-100 | £542.38 | |
