Water Meters – Woltmann Omega

[su_spacer size=”30″] [full_width padding=”0 0 0 40px”] [su_spacer size=”30″]

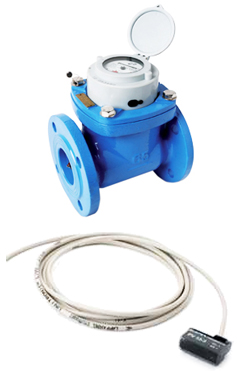

Woltmann axial water meter helix type for cold potable water T50, straight reading on rollers, orientable “copper can” dry-dial register, pre equipped for pulse emitters application.

Certified MID 2004/22/CE Module B + D or EEC 75/33.

PULSE OUTPUT AVAILABLE

• Straight Reading or Pulsed Output
• Universal Reed Switch, can be set to k1, k10 or k100
• WRAS Approved
• Reed Switch can be set for 1 pulse per ltr, 1 pulse per 10 ltr or 1 pulse per 100 ltr simply by changing switch position on the water meter.

[/full_width] [su_button url=”https://www.industrialwaterequipment.co.uk/wp-content/uploads/2018/02/woltmann-omega.pdf” style=”glass” background=”#196299″ color=”#ffffff” size=”2″ radius=”5″ icon=”icon: file-pdf-o” text_shadow=”0px 0px 0px #145485″]DATASHEET[/su_button] [su_spacer size=”30″]

---

*Reed Switch option available at checkout.

[product_table search_box=”false” totals=”false” page_length=”false” reset_button=”false” columns=”image,name,price:Price Inc VAT,add-to-cart” show_quantity=”true” image_size=”80×80″ sort_by=”price” category=”woltmann-omega”]

---

Performance according to MID 2004/22/CE Directive

Size		Permanent Flow	Maximum Flow	Transitional Flow	Minimum Flow	Working Pressure	Minimum Reading	Maximum Reading	Temperature Class
(mm)	(inch)	Q3 (m3/h)	Q2 (l /h)	Q1 (l /h)	(bar)	(l)	(m3)
50	2"	40	50,00	800	500	16	0,5	999.999	T30/T50
65	2"1/2	63	78,75	1260	788	16	0,5	999.999	T30/T50
80	3"	63	78,75	1260	788	16	0,5	999.999	T30/T50
100	4"	100	125,00	2000	1250	16	0,5	999.999	T30/T50
125	5"	160	200,00	3200	2000	16	0,5	999.999	T30/T50
150	6"	250	312,50	5000	3125	16	5	9.999.999	T30/T50
200	8"	400	500,00	8000	5000	16	5	9.999.999	T30/T50
250	10"	630	787,50	12600	7875	16	50	99.999.999	T30/T50
300	12"	1000	1250,00	20000	12500	16	50	99.999.999	T30/T50
400	16"	1600	2000,00	32000	20000	16	50	99.999.999	T30/T50
500	20"	2500	3125,00	50000	31250	16	50	99.999.999	T30/T50

---

[one_half padding=”0 0 0 0px”]

Typical Error Curve

Pressure Loss Diagram



Dimensions

[/one_half] [one_half_last padding=”0 0 0 0px”] [su_spacer size=”90″]

(mm) SIZE (inch)	50	65	80	100	125	150	200	250	300	400	500
L (mm)	200	200	225	250	250	300	350	450	500	600	800
H (mm)	252	262	272	282	297	341	371	480	516	647	785

[/one_half_last]
