Water Meter – Beta Composite

You are here : Home | Spares & Parts | Water Meters | Beta Composite


Water Meters – Beta Composite

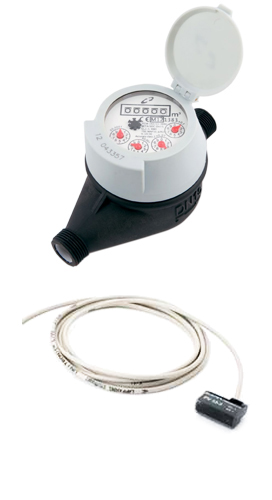

Water Meter Beta CompositeMulti-jet, dry dial, turbine water meter, for cold and warm potable water, with ring in composite and mineral glass (fixed tight counter), straight reading on numbered rollers, magnetic transmission.

Certified MID 2004/22/CE Modules B + D or EEC 75/33. Body and ring in composite.

PULSE OUTPUT AVAILABLE

  • Straight Reading or Pulsed Output
  • Universal Reed Switch, can be set to k1, k10 or k100
  • Reed Switch can be set for 1 pulse per ltr, 1 pulse per 10 ltr or 1 pulse per 100 ltr simply by changing switch position on the water meter.

*Reed Switch option available at checkout.

CodeDescriptionPrice
BETA-SDC12BETA SDC 1/2"£31.50More Information
BETA-SDC34BETA SDC 3/4"£34.50More Information
BETA-SDC1BETA SDC 1"£58.50More Information
BETA-SDC114BETA SDC 1 1/4"£66.00More Information
BETA-SDC112BETA SDC 1 1/2"£99.00More Information

Performance according to MID 2004/22/CE Directive

SizePermanent FlowMaximum FlowTransitional FlowWorking PressureMinimum ReadingMaximum ReadingTemperature Class
(mm)(inch)Q3 (m3/h)Q4 (l /h)Q2 (l /h)(bar)(l)(m3)
13/151/2"2,53,12550,031,3160,05T30/T50
203/4"4,05,00080,050,0160,05T30/T50
251"6,37,875126,078,8160,05T30/T50
301"1/410,012,500200,0125,0160,05T30/T50
401"1/216,020,000320,0200,0160,5T30/T50

Typical Error Curve

Composite Error Curve

Pressure Loss Diagram

Omega Error Curve



Dimensions

Omega Water Meter Dimensions

(mm) SIZE (inch)13/1520253040
1/2"3/4"1"1"1/41"1/2
L (mm)165190260260300
H (mm)105105120120140
Total Length of Connectors
(mm)
80100100120140
