Water Leak Detection – Beacon Sounders

You are here : Home | Products & Systems | Water Leak Detection Equipment | Beacon Sounders

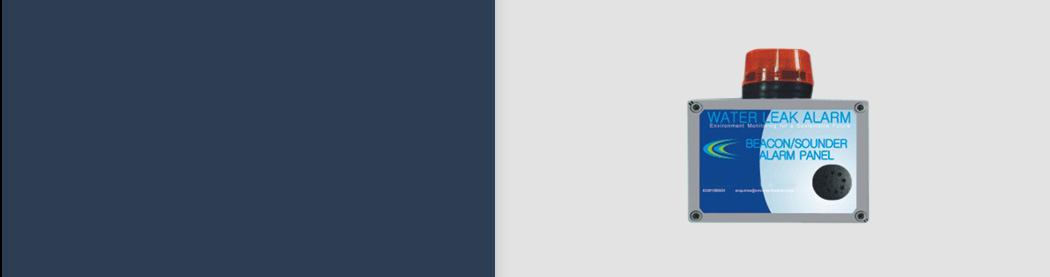

Leak Detection Units - Beacon Sounders

A range of external sounder and beacon panels to suit every need.  Designed to work with our alarm panel to offer remote alarm signalling.  Great for areas where the audio/visual output on the main panel may not be seen or heard.

  • Powered through the main alarm panel using a 12VDC supply, eliminating the need to use a NICEIC approved electrician.
  • Simple plug and play connection makes it easy to install.
  • Super bright flashing LED beacon can be seen from far away (full range that the beacon can be seen is over 30m).
  • 102dB sounder (measured at 1m from the panel) meaning it will be heard at a good distance away.
  • Automatically resets when the leak has been fixed and the master panel is clear.
  • IP65 rated enclosure allows it to be installed in most semi protected environments even outside in sheltered areas.

Water Leak Beacon Sounder

What does the product do?

Both the Beacon Alarm and the Beacon/Sounder Alarm can be connected to any of our  alarm panels. Should the master panel detect a leak, the beacon will flash and the sounder sound.

How does it work?

These panels simply plug straight into any of the alarm panels using a 4 core alarm cable. As soon as the master panel has an alarm triggered a signal is sent straight to the Beacon alarm illuminating the ultra bright beacon and sounding the 102 dB sounder.

Summary of features

  • Very bright LED beacon (visible for 30m plus)
  • 102 dB sounder
  • No local power required as power is taken directly from the master panel.
  • Automatically resets as soon as the master panel resets.



BeaconSuper Bright LED
Sounder102 dB @ 1m
Input Voltage12VDC (selv) 50mA
Operating Temperature-18°C to 50°C
Connection Cable Rating4 core 0.2mm² conductor
IP Rating65

Beacon / Sounder Diagram
