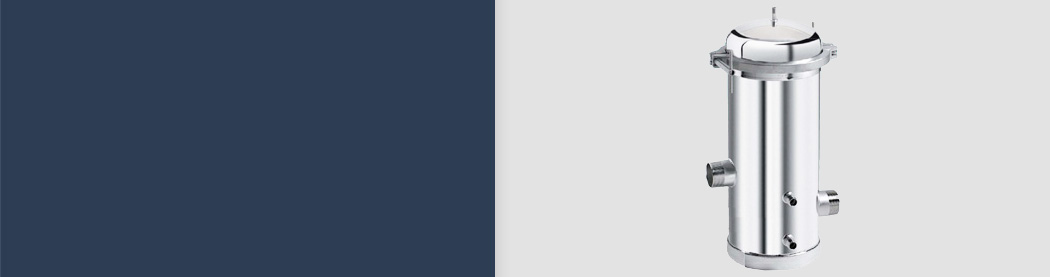

61 series STAINLESS STEEL FILTER - inverted bottom
61 Series Stainless Steel Multiple Cartridge Filter Housings
The 61 Series multi cartridge housing is available with 3, 5, 10, 15 and 19 element stacks up to 40” long. The top opening style is equipped with a Cast Vee clamp as standard for pressures up to 10 bar.
These housings are widely used where low capital cost is of prime importance. Being floor mounted and therefore free standing, these housings will suit most pre-filtration applications. Bolted closures are an option available for all models.
The 61 Series will accept either standard Double Open End or Single Open End cartridges. This includes the full range of industry standard cartridges ranging from 0.1 to 500µm with nominal lengths of 10, 20, 30 and 40”. Accessories available include pressure gauge and vent valve kits, drain valves and bolt down plates.
62 series STAINLESS STEEL FILTER - dished bottom
62 Series Stainless Steel Multiple Cartridge Filter Housings
The 62 Series Multi cartridge housing is designed to accommodate 3, 5, 10, 15, 19, 24, 30 or 40 stacks of filter cartridges up to 40” long. The top opening style is equipped with Rathmann style bolted closures as standard for pressures ranging from 6 – 10 bar g. Leg mounted and equipped with the more conventional dished end, these housings suit processes where there is a need to allow complete drainage of the clean chamber.
This design assists in maintaining the general cleanliness of the process system. With the ability to accept both standard Double Open End and Single Open End cartridges, this leg mounted, free standing housing will suit most applications. Bolted closures are an option available for all models.
The 62 Series will accept the full range of industry standard cartridgesranging from 0.1 to 500µm with nominal lengths of 30 and 40”. For information on housings suitable for 3-15 cartridges refer to datasheet ‘62 Series-3-15 Round Multi Cartridge Housings’.
61 Series Features
Free standing, easy to install design
Universal cup allows the use of plug in (Code 3, Code 8 and Code A) or DOE cartridge styles in the same housing.
Vee clamp closures use unique ‘W’ style seal for reliable leak free operation (Not available on 6119).
High quality cast Vee band clamps for safety and security (Not available on 6119).
Cast compression nut with integral PTFE washer for easy, hand tight cartridge sealing.
Wide range of connection sizes and types, cartridge lengths and materials of construction.
PED and ATEX Compliant.
62 Series Features
Dished bottom end allows complete drainage of clean chamber, leading to improved system cleanliness
Rathmann style bolted closures for reliable leak free operation
Cast compression nut with integral PTFE washer for easy, hand tight cartridge sealing
Wide range of connection sizes and types, cartridge lengths and materials of construction
PED and ATEX Complaint
