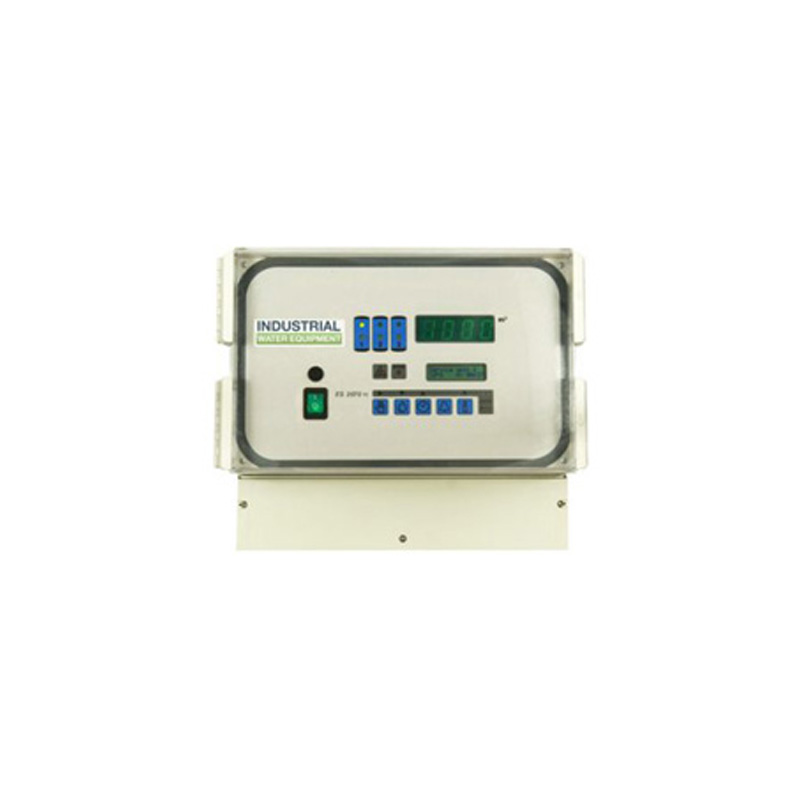

Water Filter / Softener Controller – ES2070TV

Water Filter / Softener Controller – ES2070TV

• User operated programming using double row of illuminated LCD display
• Display text in English, French, German, Italian, Spanish or Dutch
• Simple control utilising easy to follow symbols
• Adaption to user specific requirements by means of options programmable on site
• Simple operation by means of a few clear operating symbols
• Can be used for various sizes of plant
• Capacity values programmable from 1 to 65535 m3
• Regeneration/rinsing activation by time interval, flow, external switching, real time clock or manual control
• Time delayed regeneration/rinsing
• Control of quantity dependent flushing

Extensive status report facility using information button

• Flush control
• regeneration/rinsing time
• extra program
• filter capacity
• total quantity of treated water
• current input and outputs status
• software version
• start time interval
• time delayed regeneration/rinsing
• service telephone number
• input and output programming

• Large green LED-display showing remaining capacity or remaining interval time until next regeneration/rinse
• Input of service telephone number
• 6 inputs: water meter for each filter, regeneration/rinsing agent monitoring, regeneration/rinsing stop or level switch for storage tank, regeneration/rinsing start
• 9 powered relay outputs: 3 control valves, 3 home switches and 3 service valve
• 6 relay outputs (dry contact): extra programs, regeneration/rinsing procedure, take-off impulse, signalling and flushing
• Secure from power failure as all data is stored long-term without battery
• Real time clock with “lifetime” battery
• Efficient micro controller with watchdog, illegal operation code and cycle monitoring
• Safeguarded from EMC by galvanic separation between micro controller and in- and output circuits and also by additional interference suppression filter
• Available for wall mounting
• (input /output) : 24/24VAC, 115/115VAC, 230/230VAC, 115/24VAC, 230/24VAC, 240/24VA
