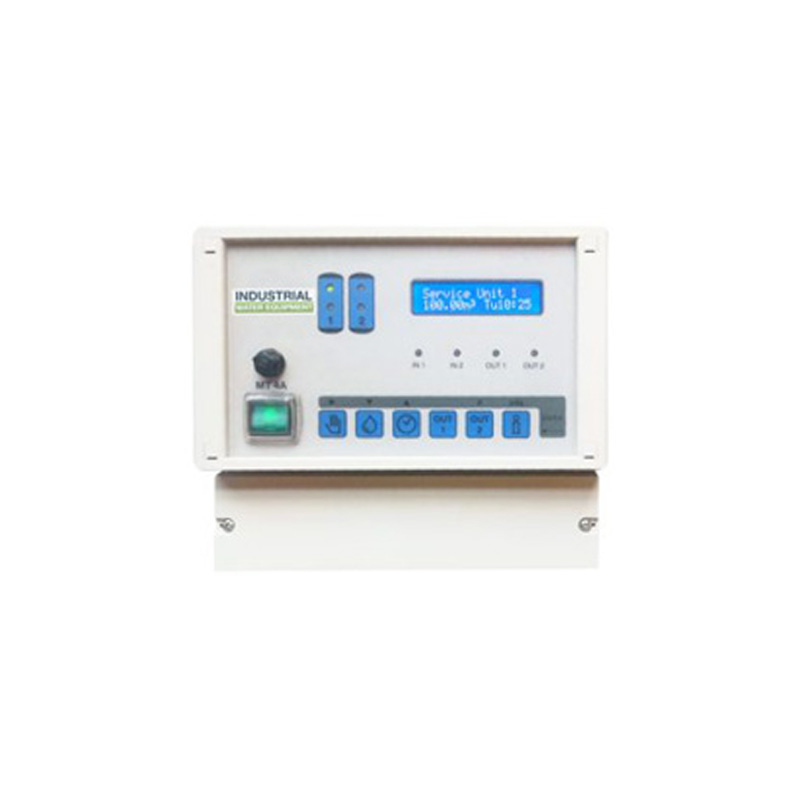

Water Softener Controller - ES2030CV

Water Filter / Softener Controller – ES2030CV

    Price range: £447.46 through £607.15



    To request a call back regarding this product please complete the form below.






        SKU: ES2030CV-1

          Water Filter / Softener Controller – ES2030CV

          • User operated programming using double row of illuminated LCD display
          • Display text in English, French, German, Italian, Spanish or Dutch
          • Simple control utilising easy to follow symbols
          • Built-in audio signal for 7 programmed signal indicators
          • Adaption to user specific requirements by means of options programmable on site
          • Simple operation by means of a few clear operating symbols
          • Can be used for various sizes of softener/filter plant
          • Capacity values programmable from 1 to 65535 m3 E or from 0.01 to 9999.99 m3
          • Regeneration/rinsing activation by time interval, flow, external switching, real time clock or manual control
          • Time delayed regeneration/rinsing
          • Control of quantity dependent flushing
          • Extensive status report facility using information button
          • Flush control
          • regeneration/rinsing time
          • extra program
          • filter capacity
          • total quantity of treated water
          • current input and outputs status
          • software version
          • start time interval
          • time delayed regeneration/rinsing
          • service telephone number
          • input and output programming
          • Input of service telephone number.
          • 1 programmable input: water meter, regeneration/rinsing stop, regeneration/rinsing start or regeneration/rinsing agent monitoring
          • 1 optional programmable input (IF circuit board) for water meter, regeneration/rinsing stop, regeneration/rinsing start or regeneration/rinsing agent monitoring
          • Inputs programmable active open or closed
          • 2 optional programmable outputs: extra program, regeneration/rinsing procedure, take-off impulse, signalling or flushing. Output relay programmable active under current or not under current
          • Secure from power failure as all data is stored long-term without battery
          • Real time clock with battery back-up
          • SD Card holder for software updates
          • Efficient micro controller with watchdog, illegal operation code and cycle monitoring
          • Safeguarded from EMC by galvanic separation between micro controller and in- and output circuits and also by additional interference suppression filter
          • Available for wall-mounting
          • Available (input /output) : 24/24VAC, 115/115VAC, 230/230VAC, 115/24VAC, 230/24VAC
          Please Select

          1 input / 5 outputs : 24 / 24 VAC, 1 input / 5 outputs : 115 / 115 VAC, 1 input / 5 outputs : 230 / 230 VAC, 1 input / 5 outputs : 115 / 24 VAC, 1 input / 5 outputs : 230 / 24 VAC, 2 inputs / 7 outputs : 24 / 24 VAC, 2 inputs / 7 outputs : 115 / 115 VAC, 2 inputs / 7 outputs : 230 / 230 VAC, 2 inputs / 7 outputs : 115 / 24 VAC, 2 inputs / 7 outputs : 230 / 24 VAC
