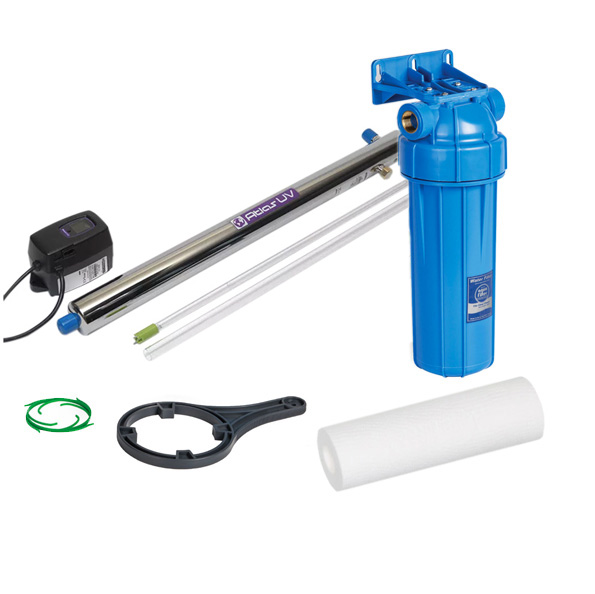

The UV water filter kit consists of an Atlas L79 – 79 L/min UV Water Filter along with a 10″ x 2.5″ cartridge filter housing and 5 micron cartridge filter.
Atlas L79 – 79 L/min UV Water Filter
The Atlas L79 UV unit provides a dosage of 30 mJ/cm² (at end of its 1 year lamp life). This unit is manufactured with domestic drinking water treatment in mind. The highly efficient ballast provides a visual display for information including remaining UV lamp life and total days of operation using the full colour LCD display.
The complete CE certified UV system is fully manufactured in Canada by one of the biggest companies in the UV market. Lamp changes are easily accomplished without interrupting the water flow and without needing any additional tools.
| Atlas L79 UV Water Filter | |
|---|---|
| Flow Rate(@30mJ/cm²) | 4.8m³/hr |
| Flow Rate(@40mJ/cm²) | 3.6m³/hr |
| Port Size | 1”MNPT |
| Electrical | 90-265V/50-60Hz |
| Plug Type | European, CEE 7/7 |
| Lamp Power (Watts) | 42 |
| Power (Watts) | 51 |
| Replacement Lamp | RL-79 |
| Replacement Sleeve | RQ-79 |
| Reactor Dimensions | 8.9 x 91.7 cm (3.5 x 36.1”) |
| Chamber Material | 304 Stainless Steel, A249 Pressure Rated Tubing |
| Controller Dimensions | 17.2 x 9.2 x 7.6 cm (6.8 x 3.6 x 3”) |
| Operating Pressure | 0.7-10.3 bar (10-150 psi) |
| Operating Water Temperature | 2-40° C (36-104° F) |
| UV Monitor Port | Yes (optional UV sensor module sold separately) |
| Solenoid Output | Yes (optional solenoid module sold separately) |
| Dry Contacts | Yes (remote alarm module sold separately) |
| 4-20mA Output | Yes (4-20mA module sold separately) |
| Lamp Change Reminder (audible & visual) | Yes |
| Lamp Out Indicator (audible & visual) | Yes |
