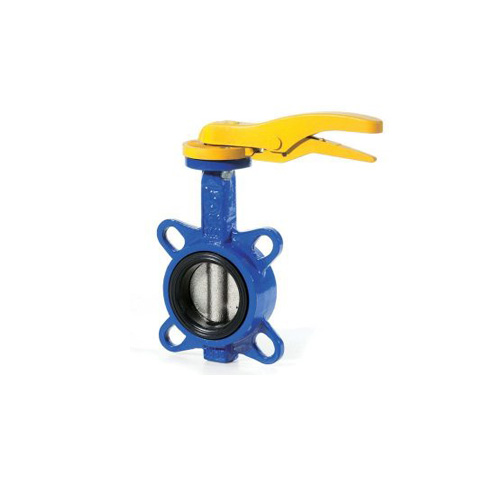

Multi-flange Wafer Pattern Butterfly Valve – Stainless Steel Disc – NBR (Buna) Liner

Multi-flange Wafer Pattern Butterfly Valve – Stainless Steel Disc – NBR (Buna) Liner

Price range: £80.08 through £1,191.86


To request a call back regarding this product please complete the form below.





      SKU: S92-LV9904

      SO 5211 for Direct Mount, Epoxy Coated Ductile Iron Body, 316 Stainless Steel Disc, NBR (Buna) Liner, Locking Lever Operation 1½” to 12”, Gearbox Operation 14” to 24”, Complies with 97/23/CE (PED) Directive CE 1115 Rated PN16 1½” to 12”, PN10 14” to 24”, Temperature -10°C to 80°C. Note: Gearbox Operation Available for all sizes, please enquire. 1½” to 16” to fit PN6, PN10, PN16, ANSI 150, Table D and/or Table E Flanges. 18” to 24” to fit PN16 Flanges.

      S92-LV9904

      1 1/2″, 10″, 12″, 2 1/2″, 2″, 3″, 4″, 5″, 6″, 8″
