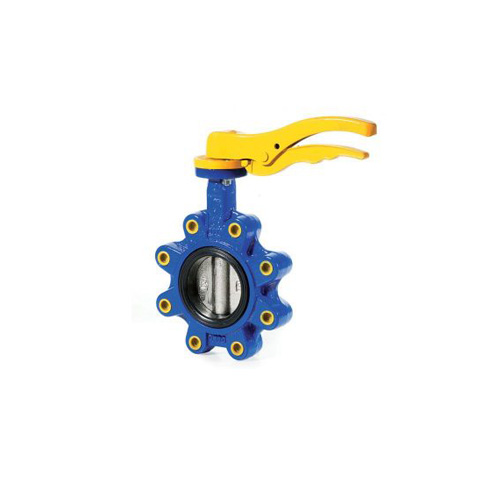

Lugged & Tapped Butterfly Valve – Nickel Plated Ductile Iron Disc – NBR (Buna) Liner

Lugged & Tapped Butterfly Valve – Nickel Plated Ductile Iron Disc – NBR (Buna) Liner

Price range: £77.07 through £702.89


To request a call back regarding this product please complete the form below.





      SKU: S92-LV9916

      ISO 5211 for Direct Mount, Epoxy Coated Ductile Iron Body, Nickel Plated Ductile Iron Disc, NBR (Buna) Liner, Locking Lever Operation 1½” to 12”, Gearbox Operation 14” to 24”, Complies with 97/23/CE (PED) Directive CE 1115 Rated PN16 1½” to 12”, PN10 14” to 24”, Temperature -10°C to 80°C. Note: Gearbox Operation Available for all sizes, please enquire. 1½” to 6” to fit PN10/16 Flanges. 8” to 24” to fit PN16 Flanges. Other Drillings Available, Please Enquire.

      S92-LV9916

      1 1/2″, 10″, 12″, 2 1/2″, 2″, 3″, 4″, 5″, 6″, 8″
