£503.58 – £653.58Price range: £503.58 through £653.58
| Type: | Dosing Pump |
| Flow rate: | 2.500 l/h ; 11.0 gpm |
| Dosing: | 0,03 - 0,3 % |
| Dosing ratio: | 1:3000 ; 1:350 |
| Operating pressure: | 0,3 - 6 bar ; 4.35 - 87 psi |
| Maximum static pressure: | 10 bar ; 145 psi |
| Temperature: | 5° - 40° C ; 41- 104° F |
| Installation: | Wall mounting; Suspended installation |
| Metal Components: | AISI 316, Duplex |
| Plastic Components: | POM, PP, PVDF HDPE, PA12 |
| Seals: | Viton, EPDM Viton EXT |

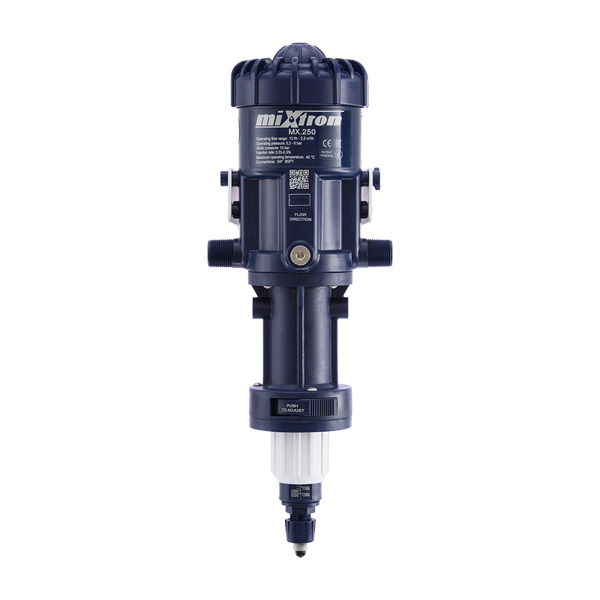

The dosing pump MX.250.P003 requires no power supply. It is a versatile and reliable solution for dosing liquids. Thanks to its flexible dosing ratio and operating pressure of between 0.3 and 6 bar, it is suitable for various applications. Its high strength is guaranteed by the AISI 316 and Duplex metal components, while the high-quality technopolymers and range of available seals ensure a long service life. The pump can be wall-mounted or directly installed on a drum, offering maximum flexibility and safety. Maximum peak pressure of 10 bar and operating temperature between 5°C and 40°C.
| Seal Type | Viton, VX, EPDM |
|---|
