£679.00 – £804.00Price range: £679.00 through £804.00
| Type: | Dosing Pump |
| Flow rate: | 750 l/h ; 3.30 gpm |
| Dosing: | 1 - 10 % |
| Dosing ratio: | 1:100 ; 1:10 |
| Operating pressure: | 0,3 - 6 bar ; 4.35 - 87 psi |
| Maximum static pressure: | 10 bar ; 145 psi |
| Temperature: | 5° - 40° C ; 41- 104° F |
| Installation: | Wall mounting; Suspended installation |
| Metal Components: | AISI 316, Duplex |
| Plastic Components: | POM, PP, HDPE, PA12 |
| Seals: | Viton, EPDM Viton EXT |

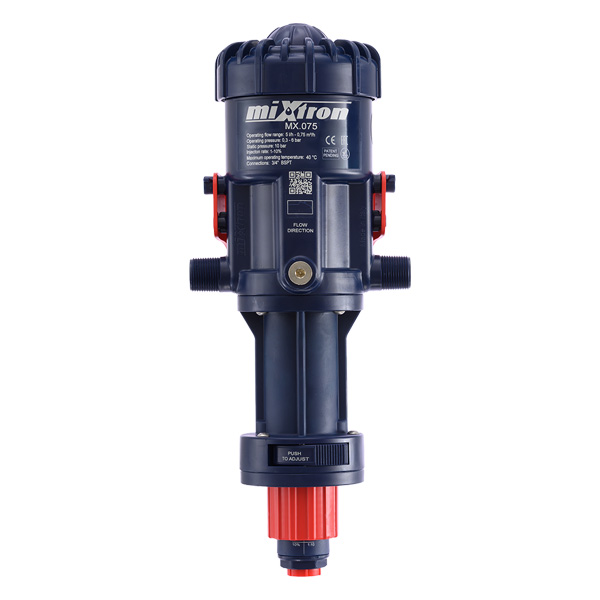

The dosing pump MX.075.P110 requires no power supply. It is a versatile and reliable solution for dosing liquids. Thanks to its flexible dosing ratio and operating pressure of between 0.3 and 6 bar, it is suitable for various applications. Its high strength is ensured by the AISI 316 and Duplex metal components, while the high-quality technopolymers and range of available seals ensure a long service life. The pump can be wall-mounted or directly installed on a drum, offering maximum flexibility and safety. Maximum peak pressure of 10 bar and operating temperature between 5°C and 40°C.
| Seal Type | Viton, VX, EPDM |
|---|
