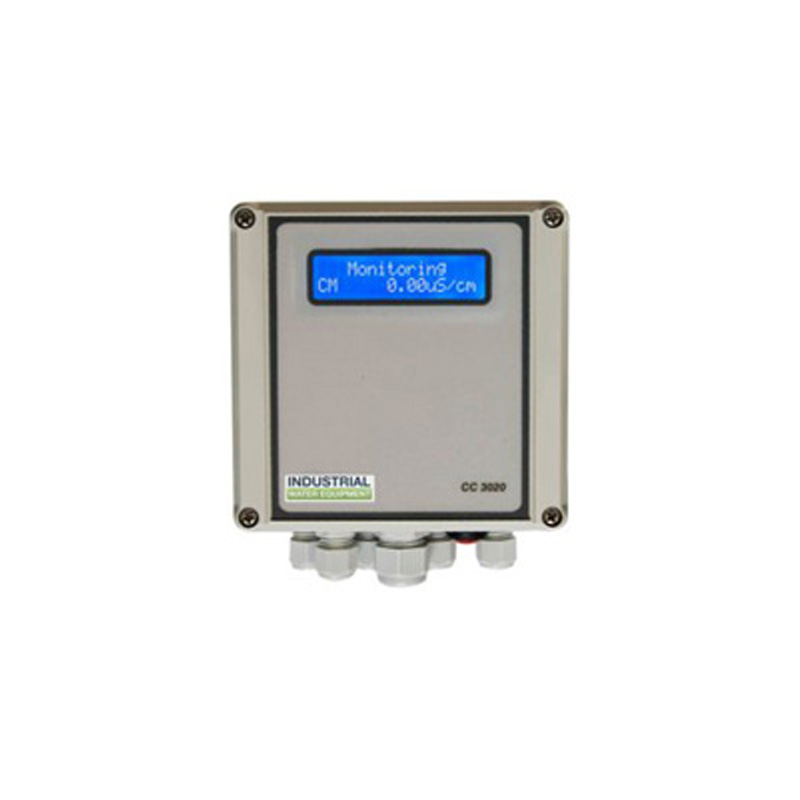

Conductivity Controller – CC3020

Conductivity Controller – CC3020

• User operated programming using double row of illuminated LCD display
• Display text in English, French, German or Dutch
• Adaption to user specific requirements by means of options programmable on site
• 4 stages : Monitoring, Pre Flush, Regeneration wait, Regeneration, Flush, Flush alarm
• Extensive status report facility using information button
• 1 input : regeneration busy
• 2 powered relay outputs : Flush valve (fused 8A), Alarm (fused 8A)
• 1 relay output (dry contact): Regeneration start
• Secure from power failure as all data is stored long-term without battery
• Efficient micro controller with watchdog, illegal operation code and cycle monitoring
• Safeguarded from EMC by galvanic separation between micro controller and in- and output circuits and also by additional interference suppression filter
• Available for wall mounting
• Available (input /output) : 12VDC/12VDC, 24VDC/24VDC, 24VAC/24VAC, 115VAC/115VAC, 230VAC/230VAC
