Reverse Osmosis – Model ND/FU 9500
Reverse Osmosis – Model ND/FU 9500

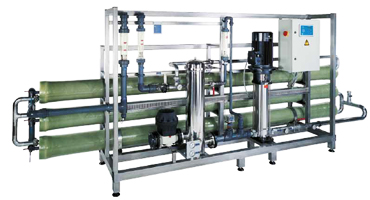

ND and ND/FU Series: 7000 12000 l/h Standard RO Systems. Stand-type unit for desalination of softened drinking water according to German drinking water regulations (free chlorine not detectable), operating on the principle of reverse osmosis. With RO 1000 controller and horizontal 8” membranes
Stainless steel main frame housing the instruments and controls. Special inlet filter with 5 μm-filter cartridge, high pressure pump low noise, multi-stage centrifugal type (incl. frequency converter for ND/FU systems), low energy spirally wound modules with energy-efficient PA/PS composite membranes in GRP vessels with inliner.
| ND/FU 9500 Technical Data | ||
| Permeate flow rate | l/h | 9500 |
| Min. salt rejection | % | 97 |
| Recovery | % | 75 |
| Operating pressure | bar | 13.5 |
| Membrane element / number | 8040/7 | |
| Voltage | V/Hz | 3 x 400/50 |
| Motor power | kW | 11 |
| Pre-fusing | A | 25 |
| Feedwater connection | DN | 50 |
| Permeate / concentrate connection | DN | 50/32 |
| Conductivity range | μS/cm | 2 – 200 |
| Min. / max. feed water pressure | bar | 2 / 6 |
| Min. / max. feed water temperature | °C | 5 / 35 |
| Max. ambient temperature | °C | 40 |
| pH | 3 – 11 | |
| Height | mm | 1900 |
| Width | mm | 4800 |
| Depth | mm | 800 |
| Weight approx | ca. kg | 800 |
| Code no | S10-381487 | |
