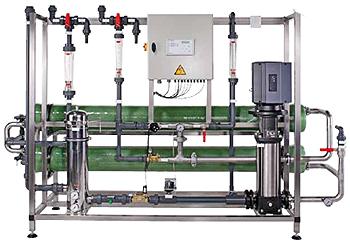

Reverse Osmosis – Model ES 5000
Reverse Osmosis – Model ES 5000
AS / FU Series: 3800 – 8000 l/h Antiscalant-based Low Pressure RO systems. Low energy consumption with frequency controlled pump (AS/FU): savings potential up to 30% Low pressure systems for desalination of hardness stabilised drinking water (by antiscalant dosing) with a salt content of < 1000 mg/l. With RO 1000 and horizontal 8“ modules.
AS- and AS/FU-systems already contain: Control for metering pump Dosin AS-K Concentrate flushing device KSE Preparation for injection point Connection Set for manual cleaning.
| Tech Data | UO | ES 5000 |
| Permeate flow rate | l/h | 5,000 |
| Min. salt rejection | % | 97 |
| Recovery | % | 75 |
| Operating pressure | bar | 9,5 |
| Membrane element / number | 8040 / 4 | |
| Voltage | V/Hz | 3 x 400/50 |
| Motor power | kW | 4,0 |
| Feedwater connection | DN | 40 |
| Permeate/concentrate connection | DN | 32 / 32 |
| Dosing point connection | R | ½" |
| Conductivity range | μS/cm | 2 – 200 |
| Min./max. feedwater pressure | bar | 2 / 6 |
| Min./max. feedwater temperature | °C | 5 / 35 |
| Max. ambient temperature | °C | 40 |
| pH | 3 – 11 | |
| Height | mm | 1,900 |
| Width | mm | 2,800 |
| Depth | mm | 750 |
| Weight | kg | 500 |
| Code no. | 381 710 |
