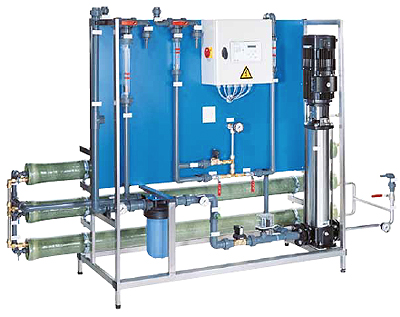

Reverse Osmosis – Model ES 1650
Reverse Osmosis – Model ES 1650
For desalination of hardness stabilised water with a salt content of < 1000 mg/l according to German drinking water regulations (free chlorine not detectable). With RO 1000 controller, high pressure pump, frequency controller, concentrate flushing device, connection set for manual cleaning device and preparation for installation of an antiscalant dosing unit.
| Tech Data | UO | ES 1650 |
| Permeate flow rate | l/h | 1,650 |
| Min. salt rejection | % | 97 |
| Recovery | % | 75 |
| Operating pressure | bar | 10,0 |
| Membrane element / number | 4040 / 6 | |
| Voltage | V/Hz | 3 x 400/50 |
| Motor power | kW | 2,2 |
| Feedwater connection | DN | 32 |
| Permeate/concentrate connection | DN | 25 / 25 |
| Dosing point connection | R | ½" |
| Conductivity range | μS/cm | 2 – 200 |
| Min./max. feedwater pressure | bar | 2 / 6 |
| Min./max. feedwater temperature | °C | 5 / 35 |
| Max. ambient temperature | °C | 40 |
| pH | 3 – 11 | |
| Height | mm | 1,650 |
| Width | mm | 2,550 |
| Depth | mm | 700 |
| Weight | kg | 250 |
| Code no. | 381 660 |
