Rainwater Harvesting – Filter Collector

You are here : Home | Products & Systems Water Recycling Rainwater Harvesting & Reuse | Filters | Filter Collector

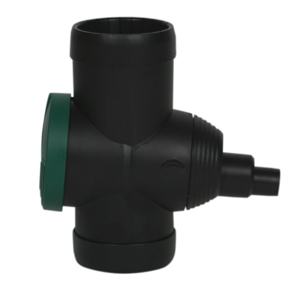

Rainwater Harvesting – Downpipe Filters  – Filter Collector

Rainwater Harvesting Filter - Filter CollectorThe class-leading 3P Filter Collector and 3P Filter Collector Universal filter and then divert harvested rainwater to maintain the highest quality tank water. Suitable for use with tanks of all sizes, the Filter Collector range will filter and divert water. It is the professional solution, used to fill small domestic water butts right up to industrial sized tanks of 10,000 litres or more. The stainless steel filter mesh is easily cleaned in-situ. Highly efficient.

The Filter Collector is compatible with any of they 3P water butts supplied with Kit 1. The push fit hose is sealed in the tank through a thick heavy duty 50mm rubber grommet supplied  in the Kit. This provides a water-tight seal which allows the filter to act as the overflow point.

Filter Collector – Technical Data

ColourProduct CodeKitRoof Size CompatibilityRound Downpipe Size CompatibilitySquare Downpipe Size CompatibilityOutlet Diameters
Brown2000810190 m268 – 110 mm65 – 75 mm32 & 50 mm
Grey2000820190 m268 – 110 mm65 – 75 mm32 & 50 mm
Black2000840190 m268 – 110 mm65 – 75 mm32 & 50 mm
White2000850190 m268 – 110 mm65 – 75 mm32 & 50 mm
