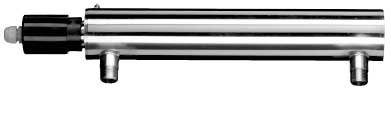

UV Water Filter – Sita Domestic
The Sita Domestic Range of Ultra Violet systems utilise low pressure mercury vapour discharge lamps to produce ultra violet light at the 254 mm wavelength (UVC) which is lethal to micro-organisms. The stainless steel
chamber incorporates a high purity quartz sleeve around the lamp. As water passes through the chamber, UVC Light penetrates and destroys the cell structure of the micro-organisms in the water.
Installation is simple and once fitted the system requires no attention and only periodic maintenance. Due to efficient design and the use of high quality components running costs are extremely low, and the lamp requires only annual replacement. The chamber is manufactured from hygienic 316L grade stainless steel ensuring strength, reliability and efficient hydraulic operation.
| UV-C Dose | >300 J/m2 (9000 h) |
| Lamp Lifespan | 9000 h |
| Manifold Material | Stainless Steel AISI 304 |
| Max Pressure | 9 bar |
| Electrical Supply | 230 V 50/60Hz |
UV107 |
|
| Maximium Flow Rate | 5 (l/min) |
| Number of Lamps | 1 |
| IN-OUT Connections | 1/8" F |
| IN-OUT Connections (mm) | 190 |
| Fault Working LED | x |
| Power Consumption W | 12 |
UV403 |
|
| Maximium Flow Rate | 10 (l/min) |
| Number of Lamps | 1 |
| IN-OUT Connections | 1/2" M |
| IN-OUT Connections (mm) | 285 |
| Fault Working LED | x |
| Power Consumption W | 16 |
Sita Range – Spares & Parts
Sita Domestic UV107 Spares |
|||
| S8-2602016081 | Replacement Lamp | £33.48 |  |
| S8-2602023314 | Quartz Sleeve | £22.95 | |
Sita Domestic UV403 Spares |
|||
| S8-2602016091 | Replacement Lamp | £38.26 | |
| S8-2602026085 | Quartz Sleeve | £26.79 | |
