Pure Water Exchange – NMB For Very High Quality Water

You are here : Home | Products & Systems | Pure Water Exchange Systems | NMB for Very High Quality Water


Pure Water Exchange Systems – NMB for Very High Quality Water

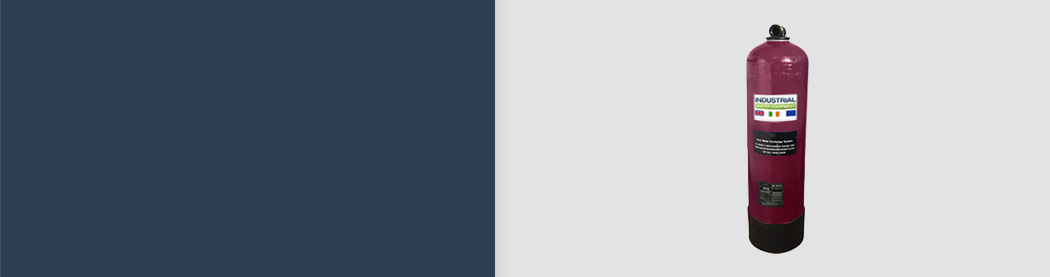

Cartridge Exchange NMBNMB Pure Water Deionisation / Demineralisation



Pure Water Deionisation / Demineralisation Exchange Systems utilising Nuclear Grade Mixed Bed Resin.

Our NMB range of DI Water Cylinders utilise NRW3240 Ion Exchange Resin which is widely regarded as the best in the industry.

NRW3240 is a nuclear grade mixed bed ion exchange resin and is a mix of gel cation resin for use with polishing water in nuclear power operations.

The NRW3240 ion exchange resin used in our demineralisation units meet all the standards required for nuclear markets.

Main Benefits

  • Our systems require no on-site installations.
  • Our systems require no drain connections.
  • Our systems have no working parts, therefore no maintenance is required.

How it Works

The outlet deionised water is filtered through a mixed bed ion exchange resin which removes impurities from the feed water.

Each exchange system will exhaust after passing the preset volume of water through the unit.

Once the Ion Exchange resin has reached capacity (saturation point) the outlet water quality will decrease.

This decrease in quality can be measured with a conductivity meter. Once the unit has exhausted simply order an exchange unit and we will deliver the new cylinder and remove the old exhausted unit.



NMB-1NMB-2NMB-3NMB-4NMB-5
Flow Rate Max750 l/h1500 l/h2000 l/h3000 l/h3500 l/h
Outlet QualityTypically 16+ megOhm when fed with <100 us/cm water
Media Volume15ltrs25ltrs40ltrs75ltrs100ltrs
*Capacity of Unit7500ltrs12500ltrs20,000ltrs37,500ltrs50,000ltrs
Min Max Pressure2-8 Bar2-8 Bar2-8 Bar2-8 Bar2-8 Bar
Vessel Height/Dia8" x 35"10" x 35"10" x 54"13" x 54"14" x 65"
Unit Weight20kg30kg48kg90kg115kg
IL / OL Connection1" BSP F/M1" BSP F/M1" BSP F/M1" BSP F/M1" BSP F/M
* The Capacity of unit is dependent on the quality of the incoming water feed
ImageNamePrice Inc VATBuy
NMB 1 For Very High Quality WaterNMB 1 For Very High Quality Water£319.44
319.44
NMB 2 For Very High Quality WaterNMB 2 For Very High Quality Water£462.00
462
NMB 3 For Very High Quality WaterNMB 3 For Very High Quality Water£652.08
652.08
NMB 4 For Very High Quality WaterNMB 4 For Very High Quality Water£1,246.08
1246.08
NMB 5 For Very High Quality WaterNMB 5 For Very High Quality Water£1,518.00
1518
ImageNamePrice Inc VATBuy
NMB 1 Exchange Unit For Very High Quality WaterNMB 1 Exchange Unit For Very High Quality Water£237.60
237.60
NMB 2 Exchange Unit For Very High Quality WaterNMB 2 Exchange Unit For Very High Quality Water£361.68
361.68
NMB 3 Exchange Unit For Very High Quality WaterNMB 3 Exchange Unit For Very High Quality Water£535.92
535.92
NMB 4 Exchange For Very High Quality WaterNMB 4 Exchange For Very High Quality Water£966.24
966.24
NMB 5 Exchange For Very High Quality WaterNMB 5 Exchange For Very High Quality Water£1,251.36
1251.36

Optional Extras

Mixed Bed Controller

The unit type EC3020 is universal applicable for automatic monitoring and control of single or twin mixed bed cartridge filters where filter cartridge should be exchanged by hand.

Water Filter / Softener Controller – EC3020 (Incl conductivity meter, 3 inputs and 3 outputs).
ModelPower in / out
EC302024/24, 115/115 or 230/230 VAC
EC3020DC12 or 24 VDC
ImageNamePrice Inc VATBuy
Water Filter / Softener Conductivity Controller – EC3020DCWater Filter / Softener Conductivity Controller – EC3020DC£368.46
368.46
Water Filter / Softener Controller – EC3020Water Filter / Softener Controller – EC3020£329.56
329.56

Inline Water Quality TDS Meter

Industrial Water Equipment Ltd have developed a low cost Inline TDS Meter which simply clips onto the outlet from our cylinders and enables you to monitor the water quality from the outlet of your system.

ImageNamePrice Inc VATBuy
TDS MeterTDS Meter£105.60
105.60
