Leak Detection Kit

[su_spacer size=”30″]

Leak Detector Single ZoneDesigned to protect your home or office from water leaks. This is especially useful when your water supply and the waste pipes run above vulnerable areas such as communal rooms, rented accommodation or offices where a leak would cause large scale damage.

Kit Includes:

Leak-Stop Alarm Panel
3m of connection cable
3m of sensor tape
5 x floor clips
15mm solenoid valve
5m valve connection cable
2m mains fly lead
BMS Connection

This is a complete system, sent out as a package to protect a tea point/kitchenette from water leaks.  It comes complete with an alarm panel, a 15mm valve, 3m of connections cable, 3m of sensor tape and all the other sundries required to install it.  If a leak occurs, the water will come into contact with the sensor tape and this immediately signals to the alarm panel to sound the buzzer and turn on the red light.  At the same time, the valve will close stopping the flow of water to the area and if connected, an alarm will be raised on the BMS (Building Management System).

Typically used in offices where the water supply and the waste pipes to and from the tea point area runs above vulnerable areas such as comms rooms or other tenants’ offices


Schematic



Single Zone Schematic

  • Automatic water shut off
  • Internal audible alarm
  • Power light indicates the unit is working
  • Red light when leak detected
  • Test button
  • Mute Button to silence the alarm
  • Output to connects to a BMS

Optional Extras



Float Switch for Leak Detection Alarms

Float SwitchDesigned to work with your leak detection alarm, to prevent your tank running empty or flooding depending on the application. Suitable for use with the High level leak detection alarm, Low level controller, Single Zone leak detection alarm (Type A & B) and the SMS Dialler.

Designed to work with the following units:

  • High level leak detection alarm
  • Low level controller
  • Single Zone leak detection alarm (Type A)
  • Single Zone leak detection alarm (Type B)
  • SMS Dialler

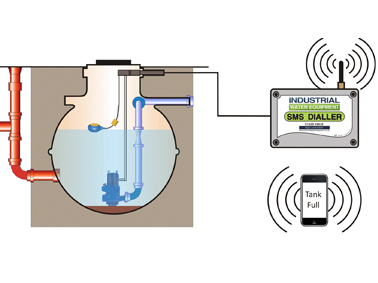

SMS Dialler – For Leak Detection Alarms

SMS Dialler

The SMS Dialler is a simple high level alarm monitoring system designed to be used in packaged pump stations. It alerts the user should the liquid rise above a maximum level. A text message is sent to warn of a failed pump or a blocked line. Having an early warning of a problem will help prevent sewage backups and protects the environment! The SMS Dialler uses a standard SIM card and all the larger network providers (Vodafone, Orange, EE)  will work perfectly well.  Setting up the system is easy by sending text commands to the unit, e.g. Textnum (followed by the desired telephone number) will store the number the unit will text if an alarm is triggered.  Contract and PAYG SIMs can both be used giving peace of mind with very little running cost.

Typically used with Packaged pump stations, septic tank, water tanks.


Light Beacon for Leak Detection Alarms

Light Beacon for Leak Detection

Designed to work with any of our leak detection alarms, to alert you when a leak is detected by means of a flashing light. Suitable for use with the High level leak detection alarm, Low level controller, Single Zone leak detection alarm (Type A & B) and the SMS Dialler.

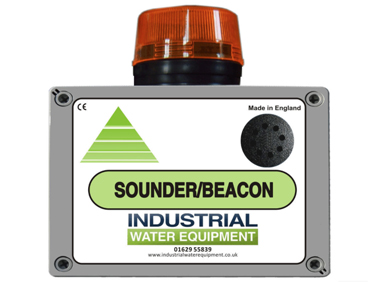

Light & Sound Beacon for Leak Detection Alarms

Light & Sound Beacon

Designed to work with any of our leak detection alarms, to alert you when a leak is detected by means of a flashing light. Suitable for use with the High level leak detection alarm, Low level controller, Single Zone leak detection alarm (Type A & B) and the SMS Dialler.
