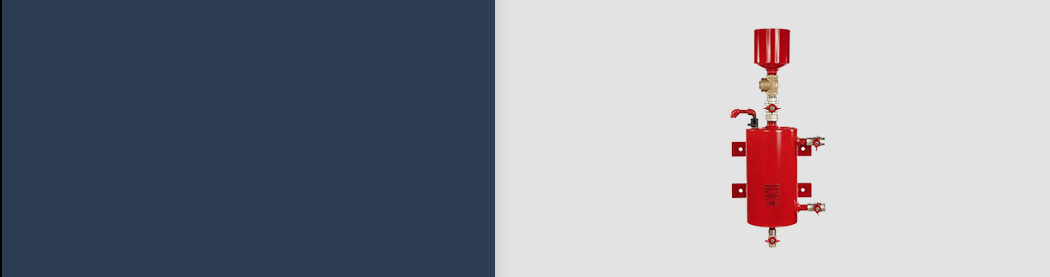

Chemical Dosing Pots

Industrial Water Equipments range of mild steel Chemical Dosing Pots consist of:

  • Drain valve
  • Air release valve
  • Non-return valve
  • Steel turndish
  • Filling valve
  • Inlet and outlet valves
  • Mild steel shell to BS 1387 (up to 150mm, schedule 20 used on 200mm and above)
  • Welded to BS EN 287
  • Designed to PD 5500 : 2000 category 3 (CE marked)
  • 14 bar – 3.5 litres to 6 litres
  • 10 bar – 10 litre to 20 litres inclusive
  • 8 bar – 25 litres
  • Powder coated paint finish

Range of Dosing Pots for adding liquid chemicals – such as corrosion inhibitors and anti freeze solutions – to sealed heating and chilled circuits. The Pot should be connected between the main flow and return pipes, with the flow in at the bottom (PF) to aid venting.

All Dosing Pots are supplied with five full-bore spherical servicing valves, safety check valve, funnel and mounting brackets. The safety check valve is designed to prevent blow- back up the funnel thereby protecting the operative.
The unit is normally wall mounted at a convenient height.

A wall stand is available. The connections are reversible for left or right handed or inline installations.

Chemical Dosing Pots Technical Drawing
