DOUBLE PLATE CHECK VALVES

HOME  | VALVES & GAUGES | CHECK VALVES | DOUBLE PLATE CHECK VALVES

NBR SEAT

Double Plate Check Valves NBR Seat

Dual Plate Valve, Ductile Iron Body upto 8″, Cast Iron 10″ – 24″, Carbon Steel Plates upto 6″, Ductile Iron Plates 10″ – 24″, Stainless Steel Springs, NBR Seat, to suit PN10/16 Flanges upto 6″, PN10 8″ – 24″, Rated PN10, Temperature -10ºC to 120ºC.

EPDM SEAT

Double Plate Check Valves EPDM Seat

Dual Plate Check Valve, Cast Iron Body, Stainless Steel Plates & Springs, EPDM Seat, to suit PN10/16 Flanges, Rated PN16, Temperature 0ºC to 120ºC.

EPDM SEAT TECHNICAL DATA

MULTI FLANGE

Double Plate Check Valves Multi Flange

Dual Plate Check Valve, Ductile Iron Body, Stainless Steel Plates & Springs, EPDM Lined, to suit PN6/10/16, ANSI 150, BS10 Table D/E, JIS5K & JIS10K Flanges, Rated PN16, Temperature -20ºC to 120ºC.

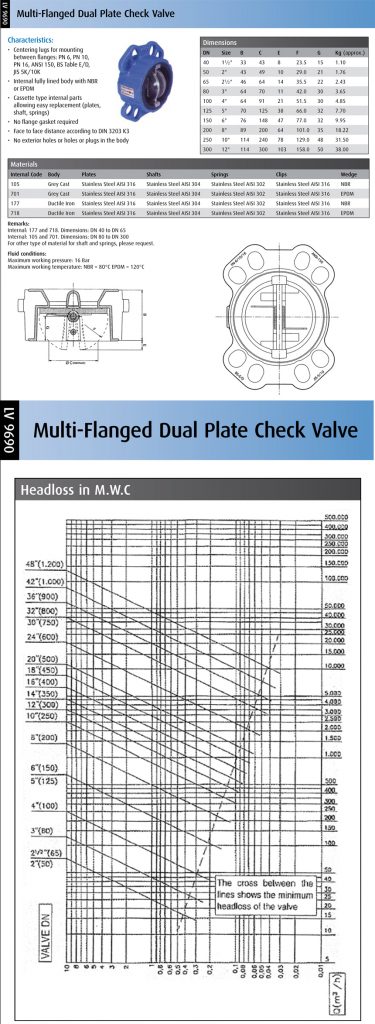

MULTI FLANGE TECHNICAL DATA
