2″ CLACK VALVES

HOME  | VALVES & GAUGES | CLACK VALVES | 2″ CLACK VALVES

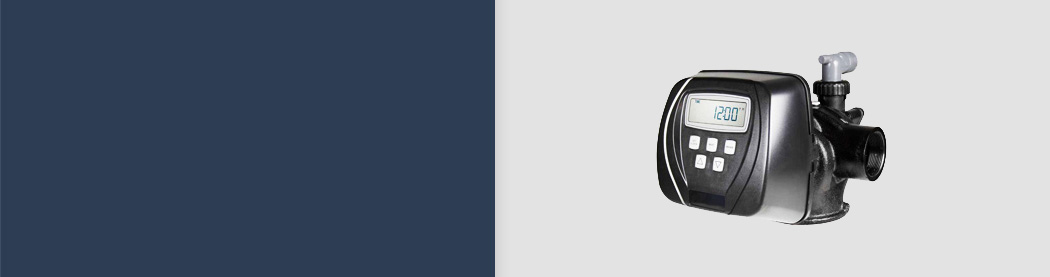

Clack valve WS2 CI

CLACK WS2 CI
Service flow rate @ 1 bar drop26 m3/hr
Backwash @ 25 psi 1.7 bar drop18 m3/hr
Tank thread4 inch 8 UN
in/out2" F BSP
Brine line3/4"
Water temperature4ºC to 43ºC
Riser Tube Diameter50mm
Operating Pressure1.5 to 8.5 bar

clack valve WS2 H

CLACK WS2 H
Service flow rate @ 1 bar drop28.4 m3/hr
Backwash @ 25 psi 1.7 bar drop28.4 m3/hr
Tank thread4 inch 8 UN Side mount or flange
in/out2" F BSP
Brine line3/4"
Water temperature4ºC to 43ºC
Riser Tube Diameter63 OD mm
Operating Pressure1.5 to 8.5 bar

Need Help?

IWE stock a complete range of Clack Valves and spares, most of which are available to buy online. If you can’t the part you require please call us on

01629 55839

we are more than happy to help.
