MINI BAG FILTER HOUSING – RANGE 84

You are here : Home | Products & Systems | Water Filters | Bag Filters Stainless Steel Housings | Mini Bag Filter Housing – Range 84

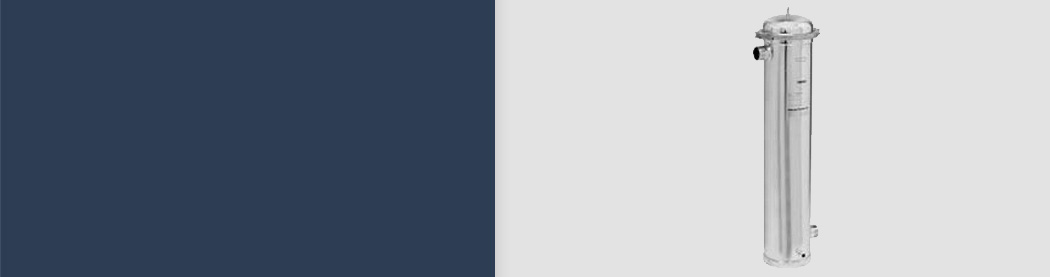

Range 84 Housing

Stainless Steel Bag Filter Housing – Range 84

This is a freestanding unit. Its diameter and height allow for a consistently high flow rate to be processed without taking up floor space. It is also capable of managing effluent of high dirt capacity.

This particular housing is compatible with all bag filters ranging from 1 – 1000µm in lengths of 16” (Single length), 32” (Double length) and 48” (Triple length)



Range 84 Series Stainless Steel Bag filterProduct Features

  • Positive bag seating mechanism to minimise risk of seal bypass
  • Robust bag support basket assembly fabricated from perforated sheet rather than wire mesh for extra strength
  • Internally and externally electropolished as standard
  • Wide range of options available for connection sizes and types and materials of construction
  • V clamp or hinged and bolted style closures
  • Inverted dished end
  • PED and ATEX Compliant

Features and Benefits

  • Integral vent to aid efficient filter changeout
  • Each housing is etched with a unique serial number for full traceability
  • Full housing customisation service available
  • Internally and externally electropolished as standard
Range 84 - Single Bag Type
Part Number84011UAN20A1EE
Max Flow Rate12 m3/hr
Connection2" BSPM
Bag Type1 x Single 7" Diameter Ring
No of bags1
GasketEPDM
Max Pressure10 bar
Price£1200.73More Information
Range 84 - Double Bag Type
Part Number84012UAN20A1EE
Max Flow Rate25 m3/hr
Connection2" BSPM
Bag Type1 x Double 7" Diameter Ring
No of bags1
GasketEPDM
Max Pressure10 bar
Price£1381.56More Information
Range 84 - Triple Bag Type
Part Number84013UAN20A1EE
Max Flow Rate40 m3/hr
Connection2" BSPM
Bag Type1 x Triple 7" Diameter Ring
No of bags1
GasketEPDM
Max Pressure10 bar
Price£1663.67More Information
